Hope Tech

HB916 X01 Bike

  • SALE
  • Regular price £6,995.00
VAT included.


We're very pleased to announce that we are dealers for the new Hope HB916!

The new HB916 is a UK made, high pivot, 160 mm travel enduro bike designed to run a 170 mm fork. Hope have brought manufacturing in house, giving them complete control over the manufacturing process. Most of the frame is made from Carbon Fibre, with a few aluminium parts where it makes sense. Bearings are mounted into the alloy to ensure a long-lasting frame.

  • Internal cable routing, rubber frame protection and "Butty Box" in frame storage and bottle cage mounts.
  • Frame kit includes shock, headset and bottom bracket.
  • Lifetime warranty for the original owner (subject to conditions).
  • Lifetime frame bearing warranty - bearings must be fitted by Hope or a registered Hope dealer.

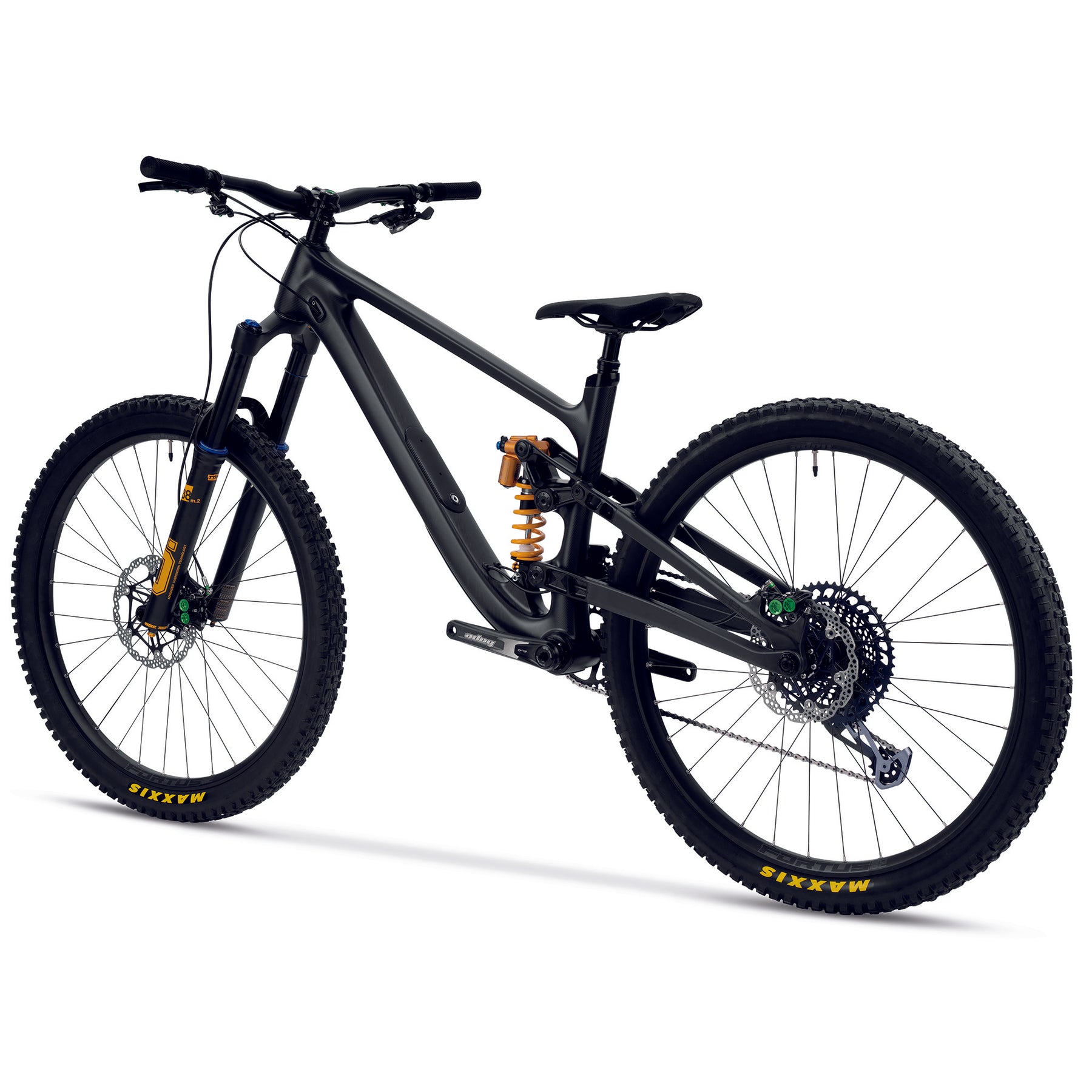

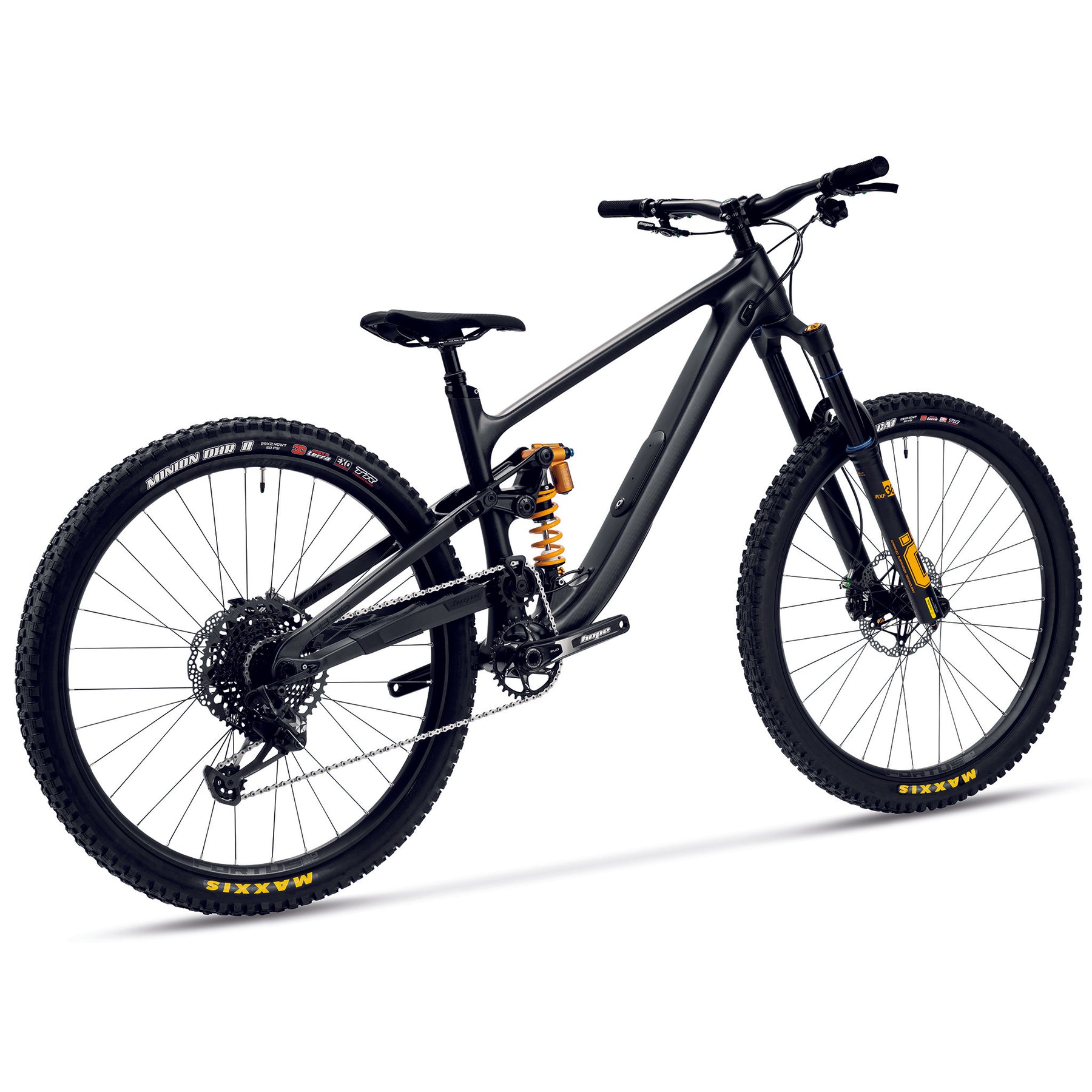

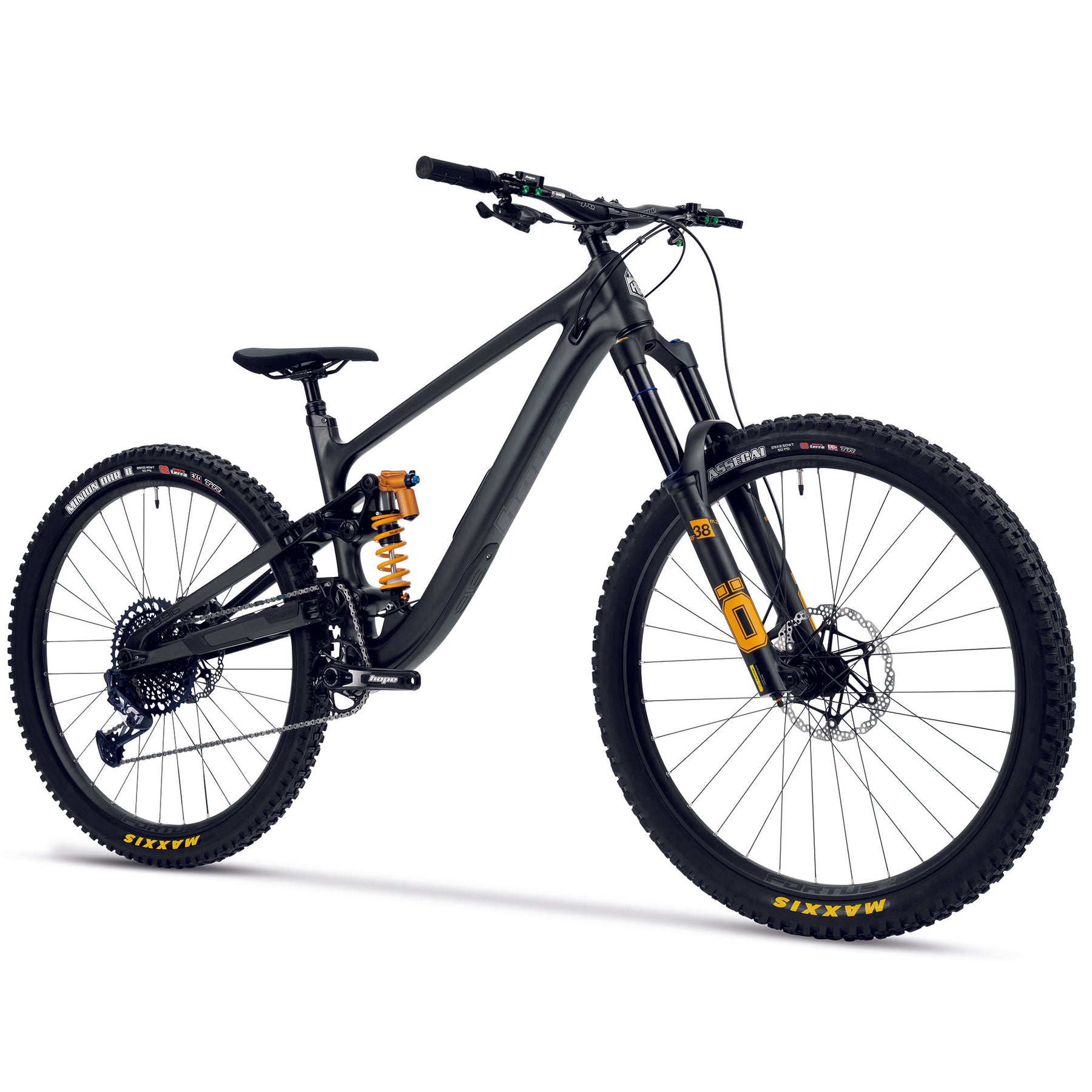

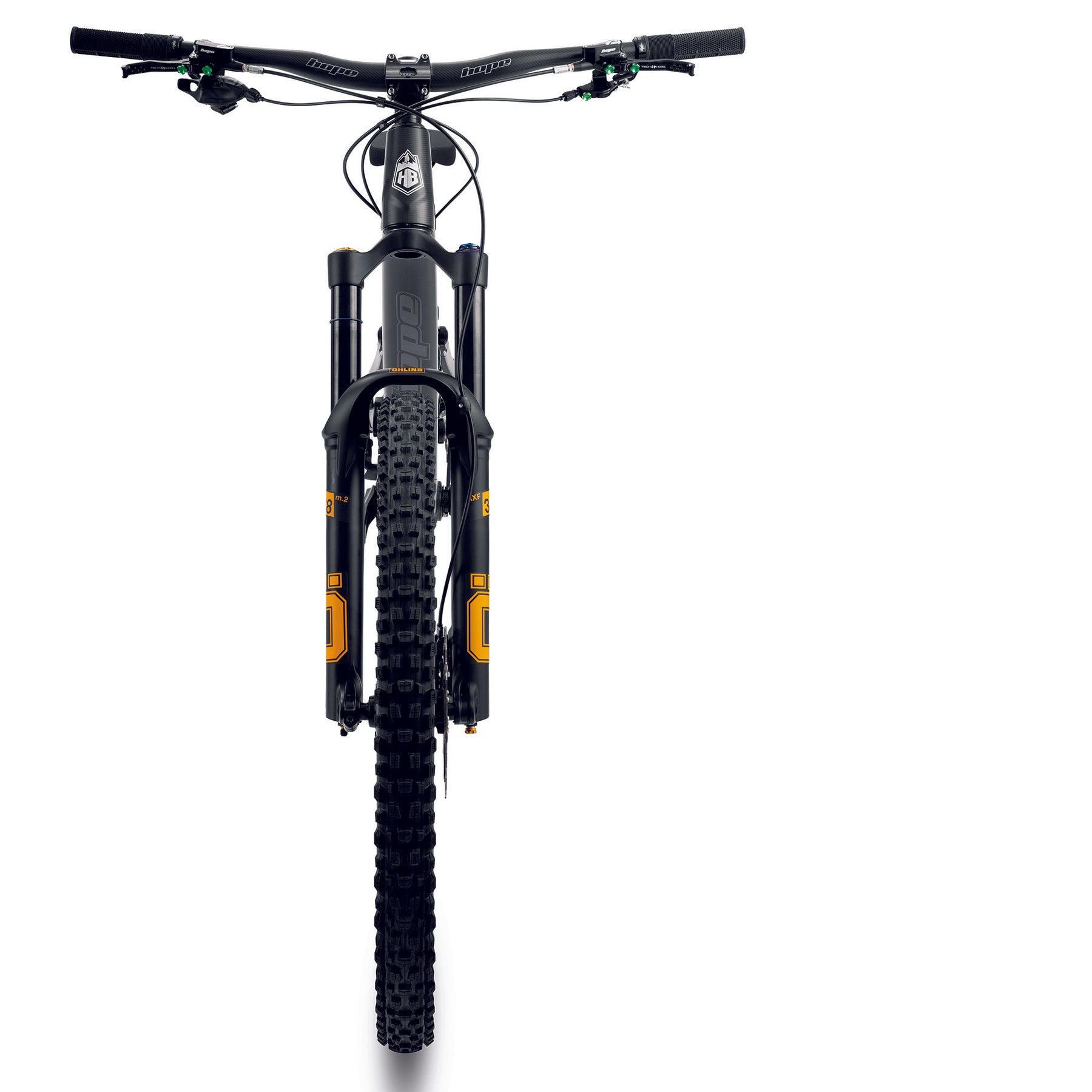

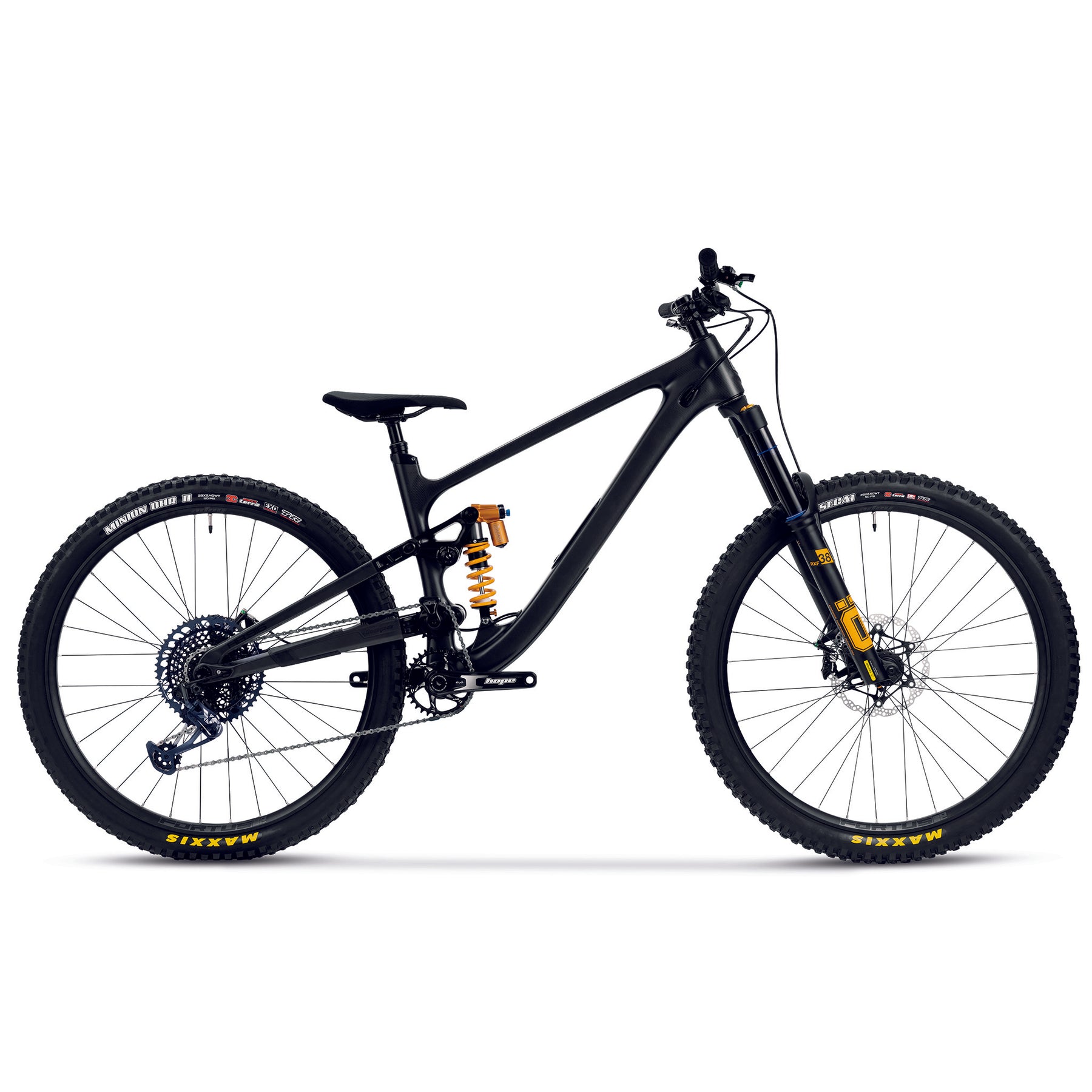

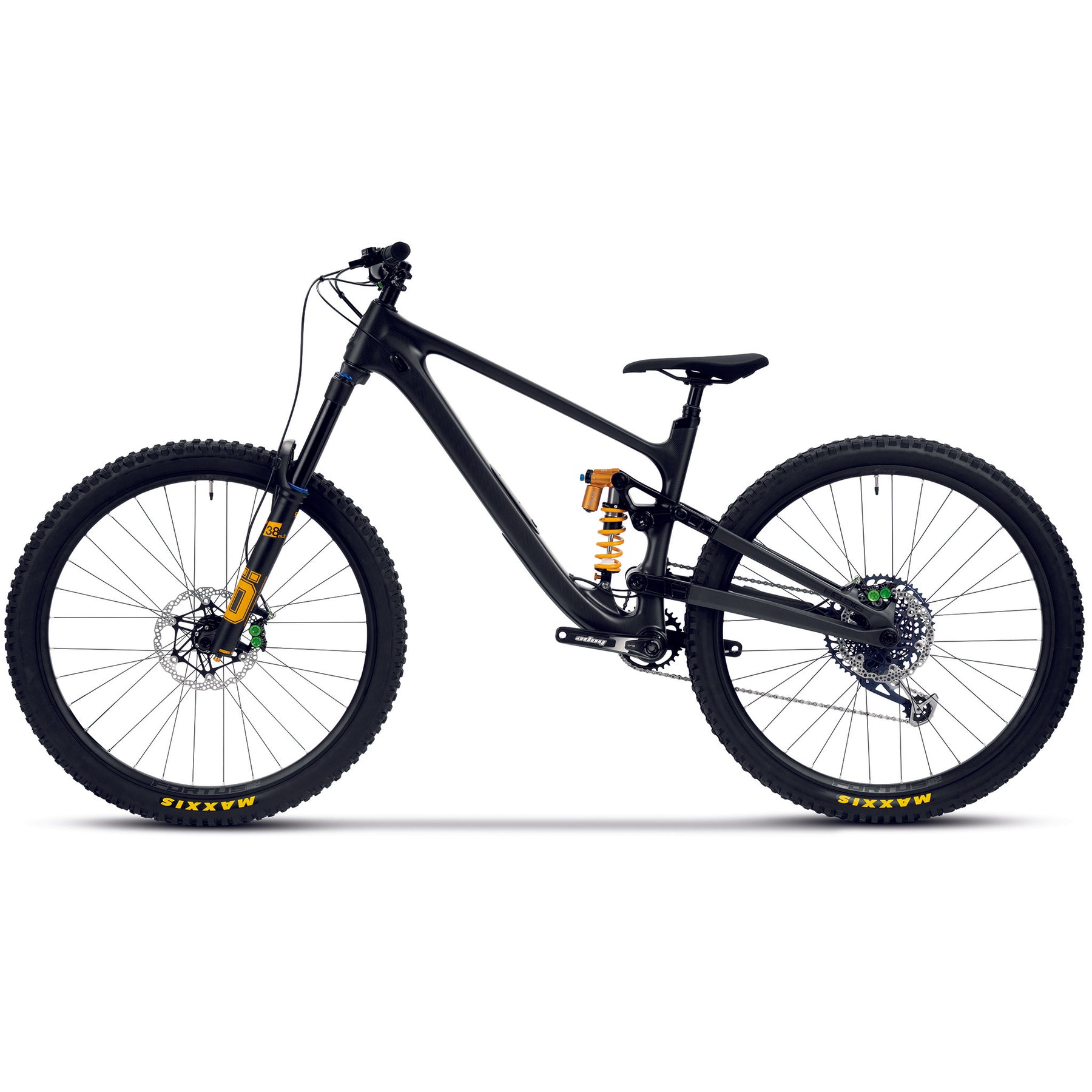

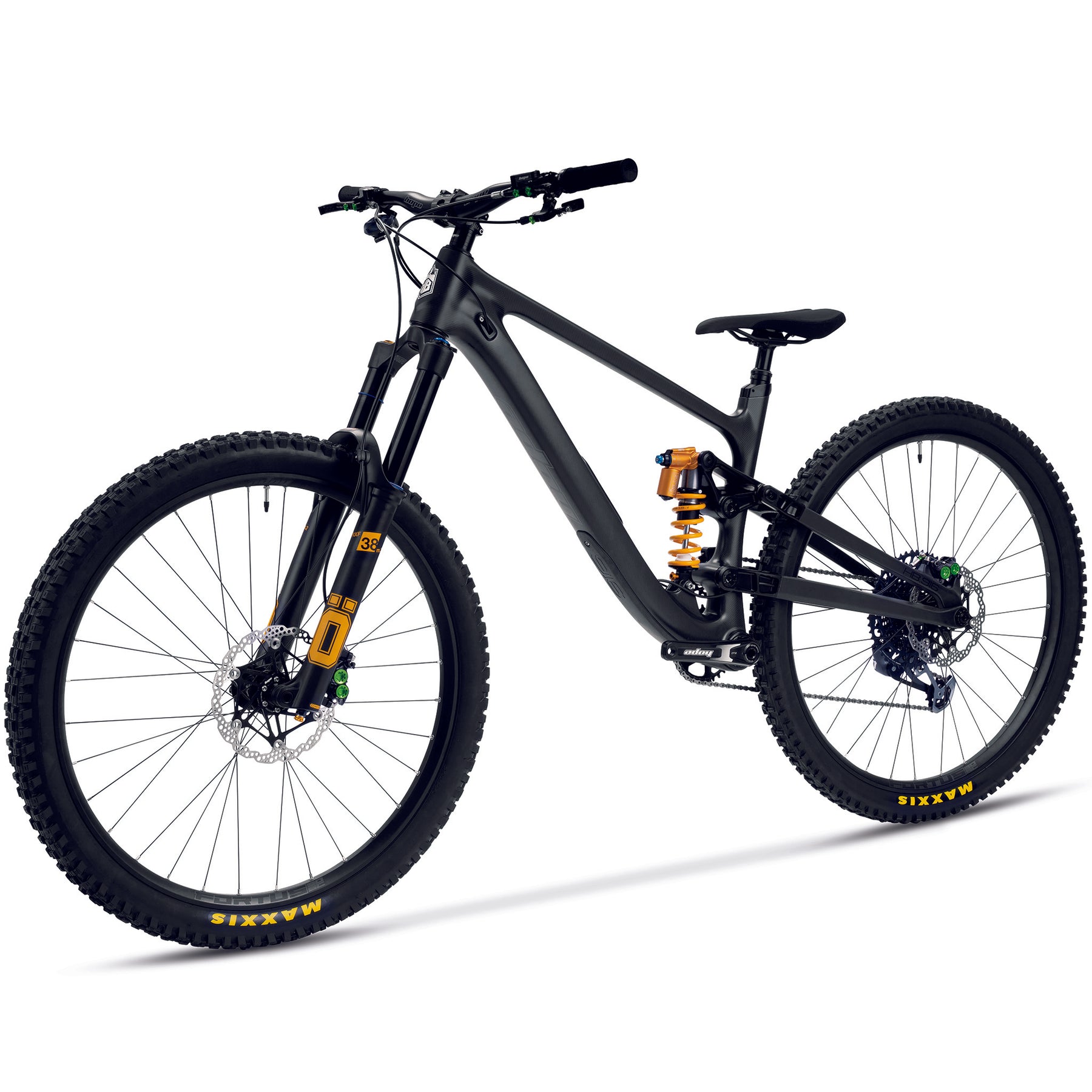

Photos show Öhlins TTX Coil/X01 complete bike in plain Carbon. We'll add images of the other options as they are available. To see the other frame colours, have a look at the HB916 frame here.

We require a deposit of £1000 at the time of ordering, at which point we'll ask you to choose final specs and colours. We'll contact you a week before delivery for payment of the balance.



Frames are currently being made to order, and delivery times are running at around 5-6 months.

HB916 with 170 mm Travel / 44 mm off set Fox 38
29" Wheels/Standard Settings
Sizes in mm
Size H1 H2 H3 H4
A: Stack 628 637 646 655
B: Reach 450 470 490 510
C: Head Tube
Angle
64° 64° 64° 64°
D: Head Tube
Length
100 110 120 130
E: Effective
Seat Tube Angle
78° 77.9° 77.7° 77.5°
F: Seat Tube
Length
395 410 440 470
G: Effective
Top Tube
583.5 606.50 631 655
H: BB Height 344 344 344 344
I: BB Drop 30 30 30 30
J: Chainstay Length 440 440 440 440
K: Wheelbase 1230 1254 1278.50 1303
L: Standover 700 710 725 740
M: Fork Offset 44 44 44 44
Seatpost Diameter
Max Seatpost Insertion 270 290 320 320
HB916 with 170 mm Travel / 44 mm off set Fox 38
29"/27.5 Wheels/Standard Settings
Sizes in mm
Size H1 H2 H3 H4
K: Wheelbase 1226 1250 1274.50 1299
I: BB Drop 11.5 11.5 11.5 11.5
