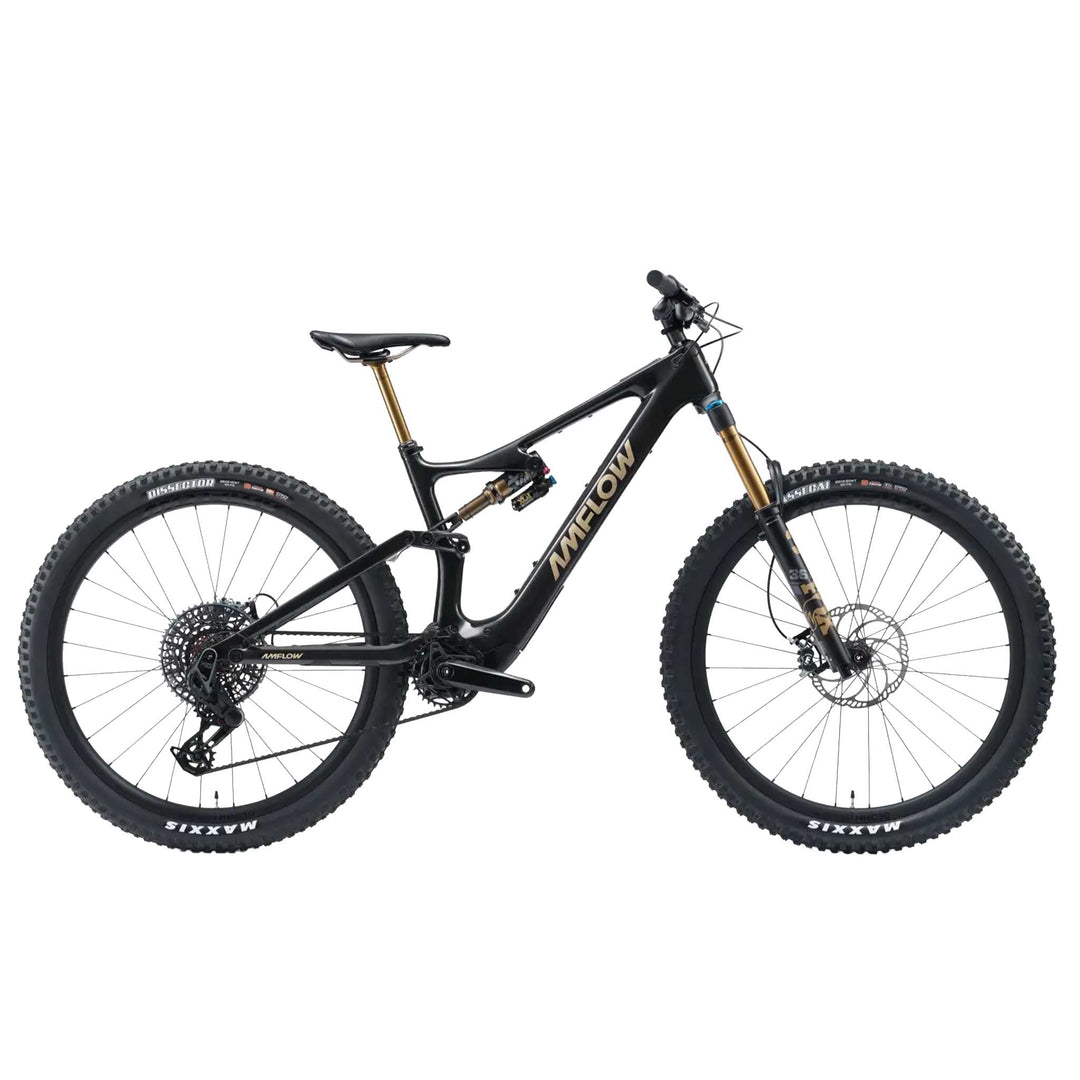

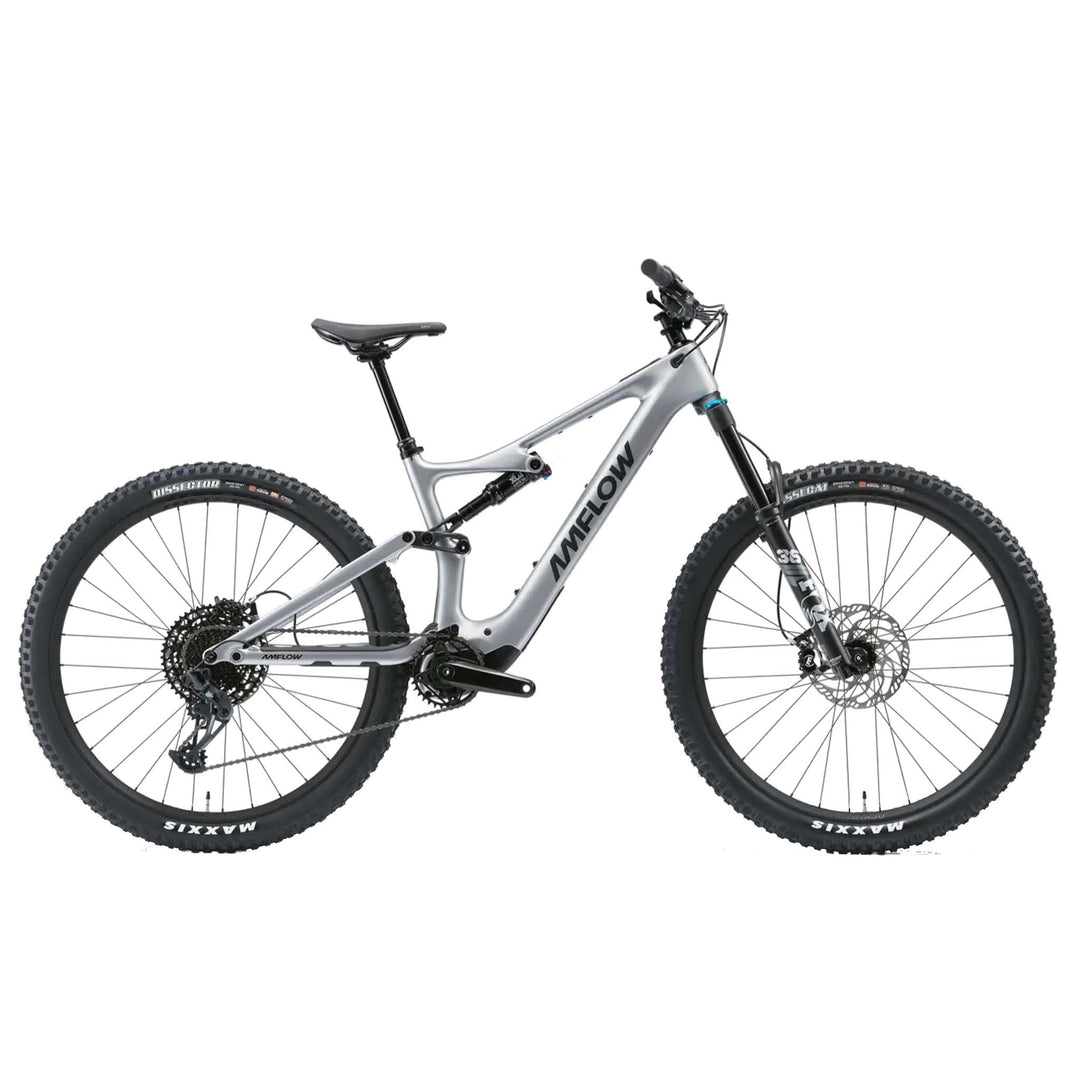

Amflow have hit the ground running with the most powerful motors and most advanced software. The initial range has two models in the 160/150mm travel category, both with the same motor and electronics. The range topping PL Carbon Pro has Fox Factory suspension front and back, Magura MT7 brakes and an XO T-Series drivetrain. Amflow have pushed the boat out on the £8999 Pro model with their own carbon bar and rims.
Amflow's DJI motor is powerful and lightweight, with a high capacity lightweight battery. DJI have built-in battery health monitoring to keep the battery in the best condition, and the tiny charger will get a completely flat battery up to 75% charged in an hour and a half.
Connect the bike to your phone to set up multiple anti theft and location monitoring, and collect data like speed, range and cadence.
In addition to Eco, Trail and Turbo modes, the DJI Avinox Drive system has an Auto mode, which adapts to the trail in real time. Hit the “Boost” mode for an extra hit of power - an instant 120nm of torque.
- Unmatched power and class leading light-weight.
- Advanced software with phone connectivity.
- Walk mode with roll back prevention and hill start.
- Stationary gear shifting.
- Real time battery health monitoring.
- Fast charging - 0-75% in 1.5 hours.
- Built in anti-theft options in the Avinox app.
Amflow Geometry & Sizing

Amflow PL Carbon Geometry | ||||
---|---|---|---|---|
M | L | XL | XXL | |
A: Stack | 618 | 628 | 641 | 655 |
B: Reach | 452 | 475 | 500 | 525 |
C: Head Tube Angle | 64.5° | |||
D: Head Tube Length | 105 | 115 | 130 | 145 |
E: Effective Seat Tube Angle | 77° | |||
F: Seat Tube Length | ||||
G: Top Tube Effective | 595 | 620 | 648 | 676 |
H: BB Height | 345.5 | |||
I: BB Drop | 29 | |||
J: Chain Stay | 445 | |||
K: Wheel Base | 1227 | 1255 | 1289 | 1318 |
L: Stand Over Height | 780 | 785 | 790 | 795 |
M: Fork Offset | 44 | |||
SeatPost Diameter | 31.6 | |||
Handlebar Width | 800 | |||
Stem Length | 35 | |||
Crank Length | 155 | 155 | 160 | 160 |
