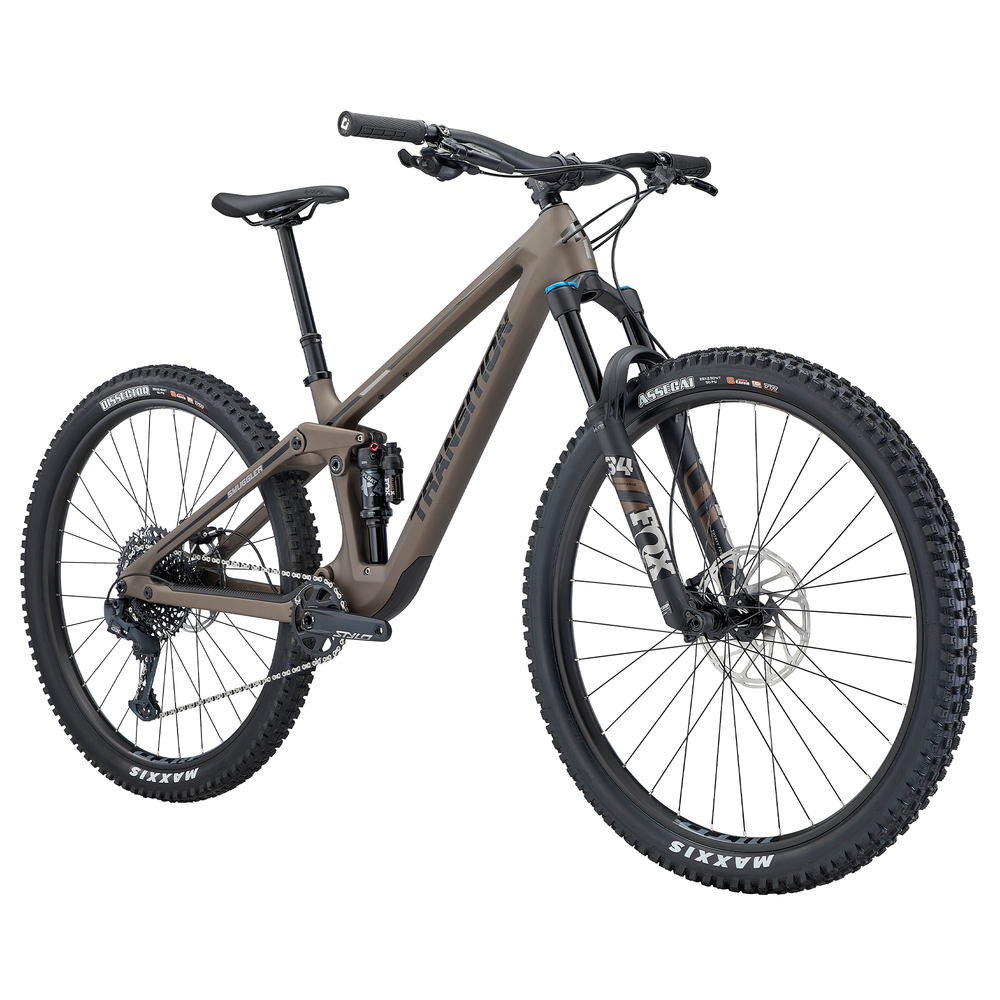

Discover the Unmatched Versatility of the Transition Smuggler!

Introducing the Transition Smuggler, a trailblazing masterpiece designed to deliver the perfect balance of speed, energy, and capability. Transitions goal was to create a bike that combines the quick and lively feel of the Spur with increased front and rear travel. What emerged was a remarkable fusion of the Spur and Sentinel, combining geometry, travel, capability, and weight into an exceptional package.

If your riding isn't just about downhill, but you mix in single track adventures, technical trails, and winding pathways, then this might be the bike for you. The Smuggler is purpose-built to conquer all these terrains, making it the perfect companion for your trail explorations.

Much like a reliable and versatile tool you reach for in any situation, the Smuggler is the ultimate go-to bike for trails that ascend, descend, and meander in every direction.

Equipped with dual 29-inch wheels, 130 mm of rear travel, and 140 mm of front travel, the Smuggler stands as one of the most adaptable bikes in our line-up. Its highly progressive leverage curve and confidence-inspiring geometry make it eager to conquer mile after mile, providing steadfast stability even on the most demanding trails. Nestled perfectly between the Spur and Sentinel in terms of travel, geometry, and capability, it embodies the best of both worlds. Whether you're charging full-throttle on your favourite single track or tackling steep descents, the Smuggler empowers you to savour every moment of your ride without limitations.

Unleash your trail-riding potential with the Transition Smuggler—the ultimate companion that delivers unrivalled performance, versatility, and pure enjoyment in every adventure.

Transition Smuggler Geometry & Sizing

Transition Smuggler Geometry
Sizes in MM S M L XL XXL
A: Stack 607 616 625 635 644
B: Reach 430 450 485 510 535
C: Head Tube
Angle
65° 65° 65° 65° 65°
D: Head Tube
Length
100 110 120 130 140
E: Effective
Seat Tube Angle
79.3° 78.6° 78.1° 77.6° 77.3°
F: Seat Tube
Length – Carbon
360 390 430 460 490
F: Seat Tube
Length – Alloy
375 390 430 460 490
G: Effective
Top Tube
555 588 617 645 670
H: BB Height 340 340 340 340 340
I: BB Drop 35 35 35 35 35
J: Chainstay Length – Carbon 435 435 440 440 440
J: Chainstay Length – Alloy 437 437 443 443 443
K: Wheelbase – Carbon 1179 1213 1247 1277 1306
K: Wheelbase – Alloy 1181 1215 1250 1280 1309
L: Standover
M: Fork Offset 44 44 44 44 44
Seatpost Diameter 31.6 31.6 31.6 31.6 31.6
Max Seatpost Insertion – Carbon 225 255 295 325 360
Max Seatpost Insertion – Alloy 220 250 290 320 355




Transition Bikes Sizing Chart
