Yeti SB160 - Richie Rude

Yeti SB160

Filter
    2 products

    All new for 2023! The outgoing SB150 won more EWS races than any other bike, and the new SB160 takes over where the SB150 leaves off.

    • Patented compact suspension wishbone.
    • Floating collet suspension pivot axles for improved stiffness and bearing life.
    • 5 Size specific geometries and chainstay lengths.
    • 2.6 tyre clearance.
    • 25 mm more downtube clearance than the SB150.
    • Threaded BB - UDH - Boost 148 axle.

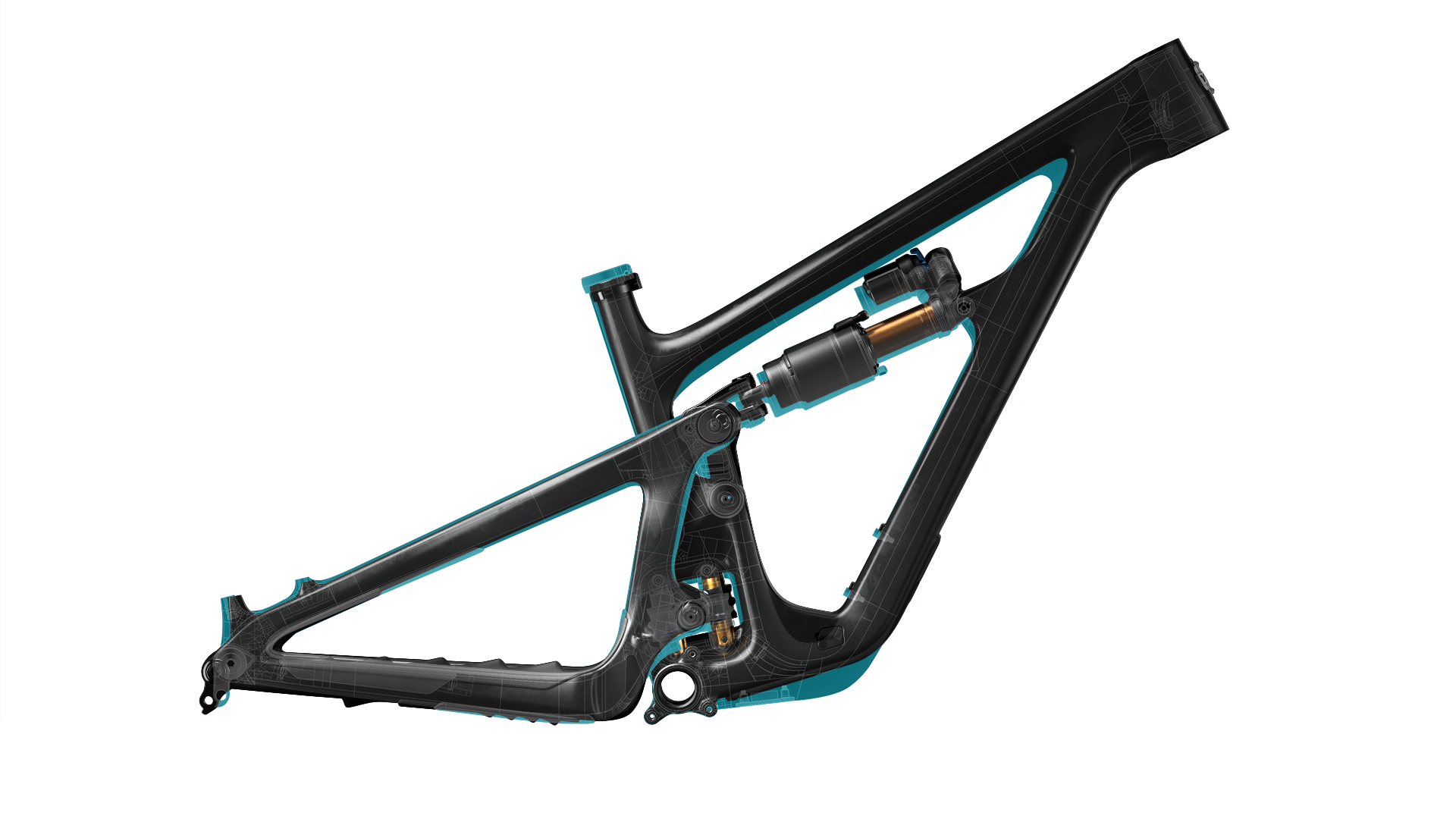

    SB150 vs SB160

    Yeti SB160 Geometry & Sizing

    20Twenty Bike Geometry

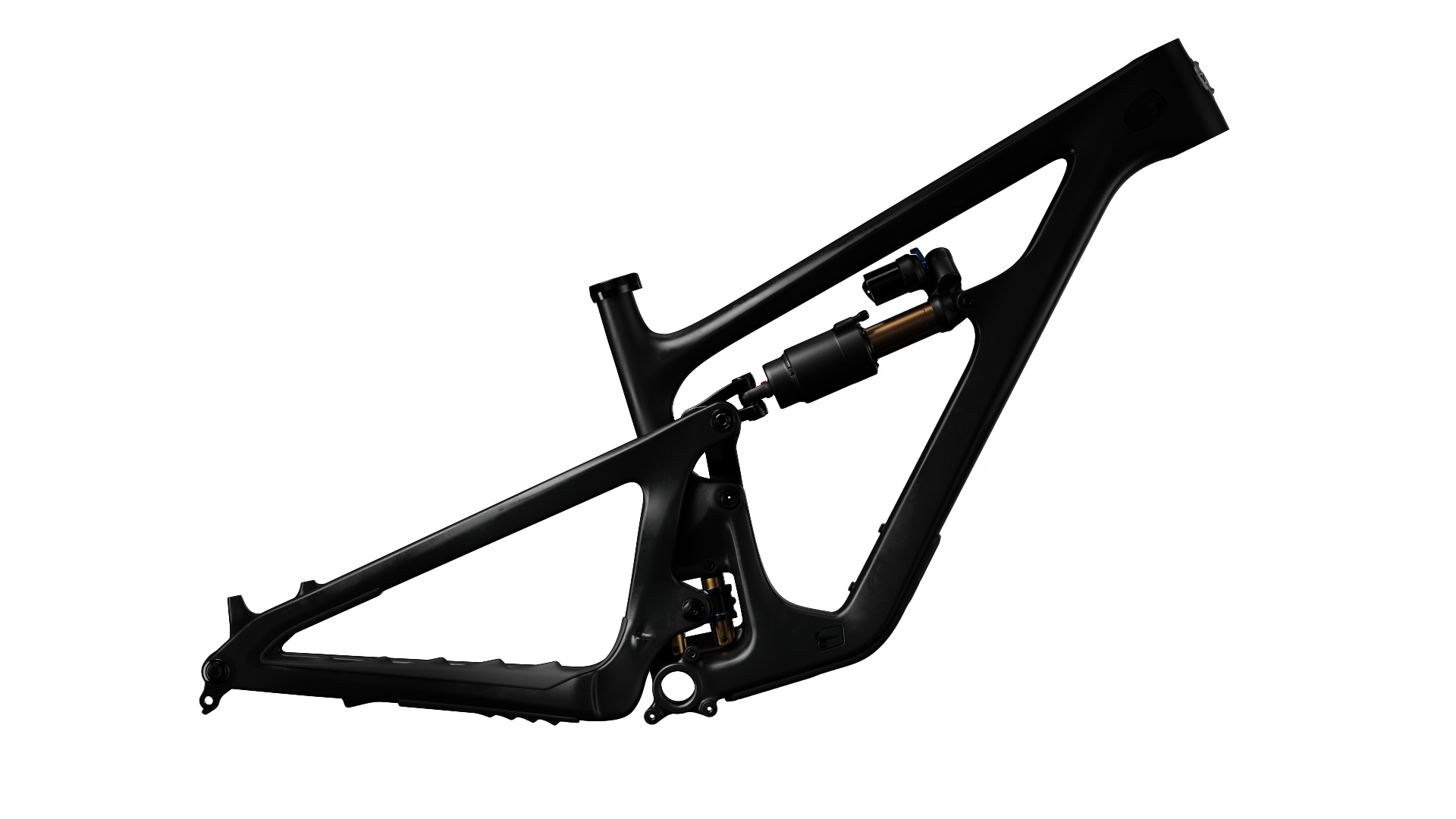

    Yeti SB160 Geometry
    Sizes in MM S M L XL XXL
    A: Stack 615 620 625 635 655
    B: Reach 435 465 485 510 525
    C: Head Tube
    Angle
    64° 64° 64° 64° 64°
    D: Head Tube
    Length
    95 101 107 118 140
    E: Effective
    Seat Tube Angle
    77.5° 77.5° 77.5° 77.5° 77.5°
    F: Seat Tube
    Length
    365 400 440 470 485
    G: Effective
    Top Tube
    571 602 624 651 670
    H: BB Height 353 353 353 353 353
    I: BB Drop
    J: Chainstay Length 437 439 441 442 445
    K: Wheelbase 1211 1246 1270 1302 1329
    L: Standover 735 744 750 756 757
    M: Fork Offset 44 44 44 44 44
    Seatpost Diameter 31.6 31.6 31.6 31.6 31.6
    Handlebar Width 800 800 800 800 800
    Stem Length 50 50 50 50 50
    Crank Length 170 170 170 170 170




    Size Rider Height
    Small 155 cm - 170 cm
    Medium 165 cm - 180 cm
    Large 178 cm - 191 cm
    XL 185 cm - 201 cm
    XXL 195 cm - 210 cm
