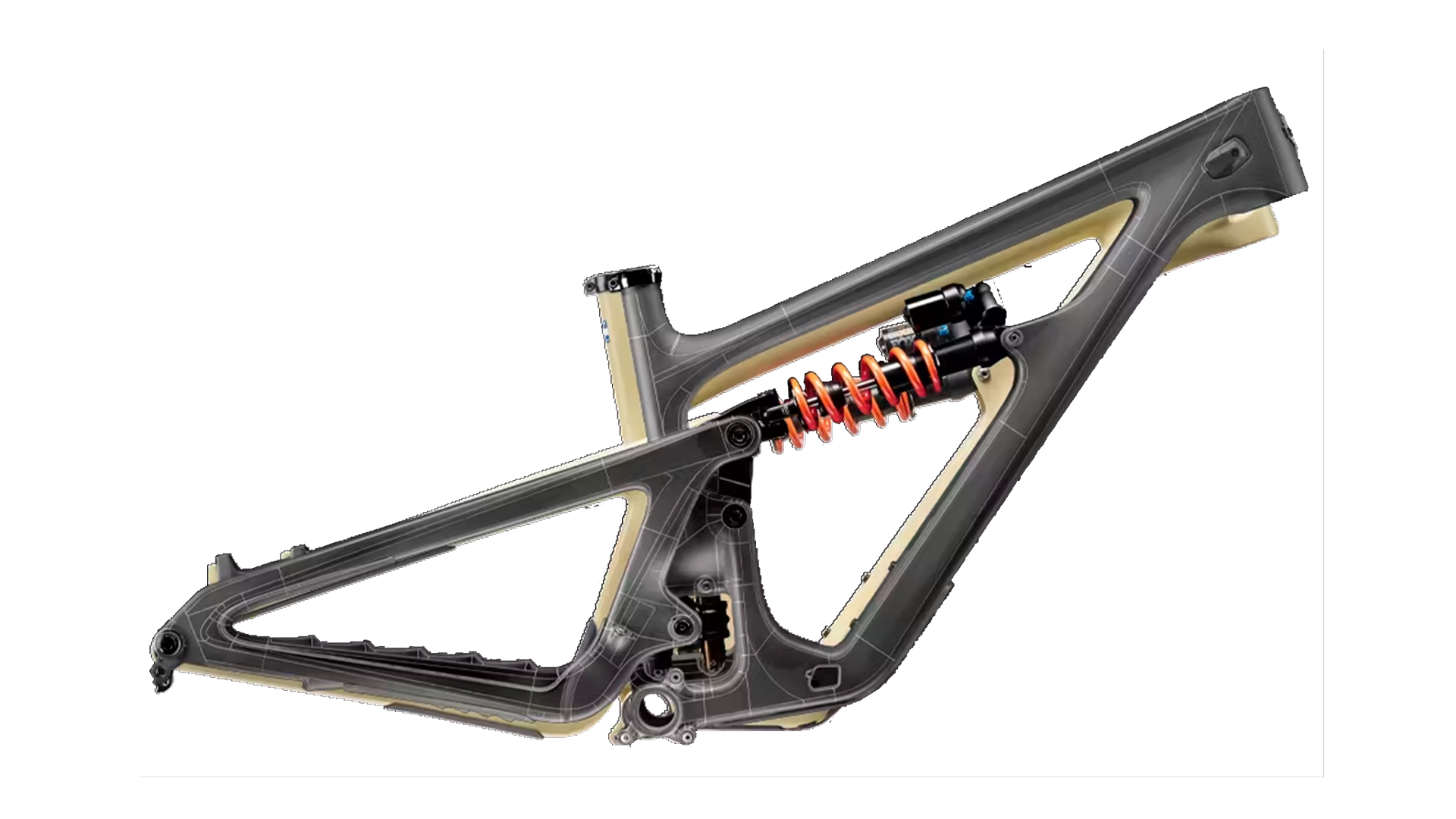

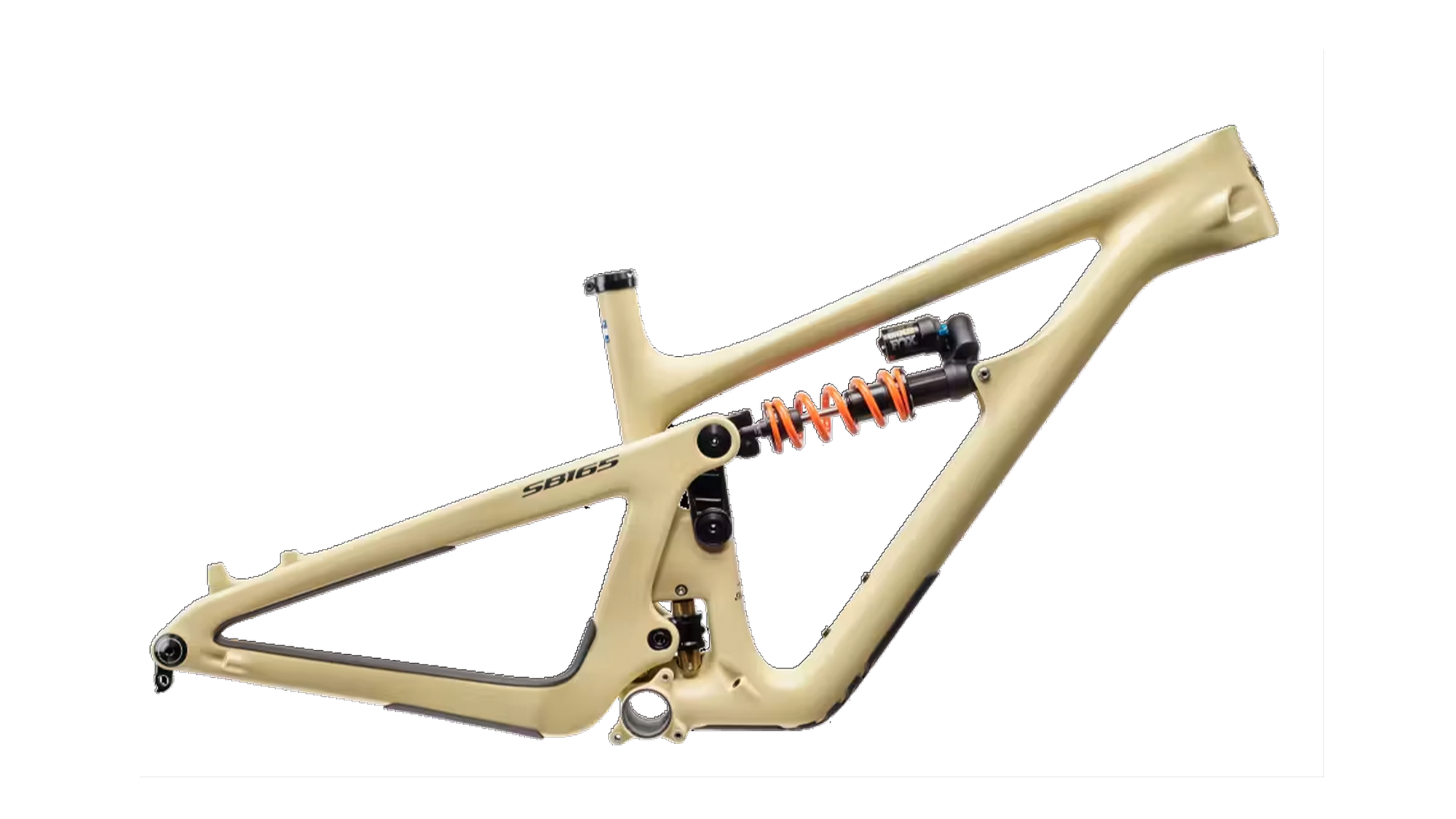

Burly 165 mm / 27.5 bike, lab tested to DH strength standards. If challenging yourself to ride more difficult trails, jump bigger gaps and take techier lines is more important than race wins, this could be the bike for you. Devouring big terrain, the SB165 feels better the faster, steeper and deeper riders go.
- Switch Infinity patented suspension system.
- High modulus carbon fibre main frame and swing arm.
- Integrated ISCG-05 mounts.
- Tapered integrated headtube (41 mm/52 mm).
- Custom down tube protector, chain guards, and optional shuttle guard.
- Internally moulded carbon tubes inside of frame for hassle-free cable routing.
- Integrated axle and derailleur hanger system.
- Boost hub spacing, front and rear.
- Clearance for standard sized water bottle inside mainframe.
- Manufacturers Lifetime Warranty.
- Tested to Yet's DH standards -well beyond what others do for a 165 mm trail bike.
- Dual crown fork compatible.
- Clearance for 2.6" tyres.
- Waterbottle compatible.
Yeti SB165 Geometry & Sizing
|
Yeti SB165 Geometry |
||||
|---|---|---|---|---|
| Sizes in MM | S | M | L | XL |
| A: Stack | 594.9 | 599.9 | 609.9 | 619.9 |
| B: Reach | 430.1 | 460.1 | 480.1 | 505.1 |
| C: Head Tube Angle |
63.5° | 63.5° | 63.5° | 63.5° |
| D: Head Tube Length |
104.8 | 110.4 | 121.6 | 132.8 |
| E: Effective Seat Tube Angle |
77° | 77° | 77° | 77° |
| F: Seat Tube Length |
380 | 410 | 450 | 495 |
| G: Effective Top Tube |
||||
| H: BB Height | 344.9 | 344.9 | 344.9 | 344.9 |
| I: BB Drop | ||||
| J: Chainstay Length | 433 | 433 | 433 | 433 |
| K: Wheelbase | 1197.7 | 1230.2 | 1255.2 | 1285.2 |
| L: Standover | 710.4 | 716.3 | 723.4 | 746.7 |
| M: Fork Offset | 37.5 | 37.5 | 37.5 | 37.5 |
| Seatpost Diameter | 31.6 | 31.6 | 31.6 | 31.6 |
| Seatpost Drop | 150 | 175 | 200 | 200 |
| Size | Rider Height |
|---|---|
| S | 155 cm -170 cm |
| M | 165 cm – 180 cm |
| L | 178 cm – 191 cm |
| XL | 185 cm – 201 cm |
