Name: Kurgan Elite eBike
Brand: Deviate
Price: 7999.0 GBP
Availability: InStock

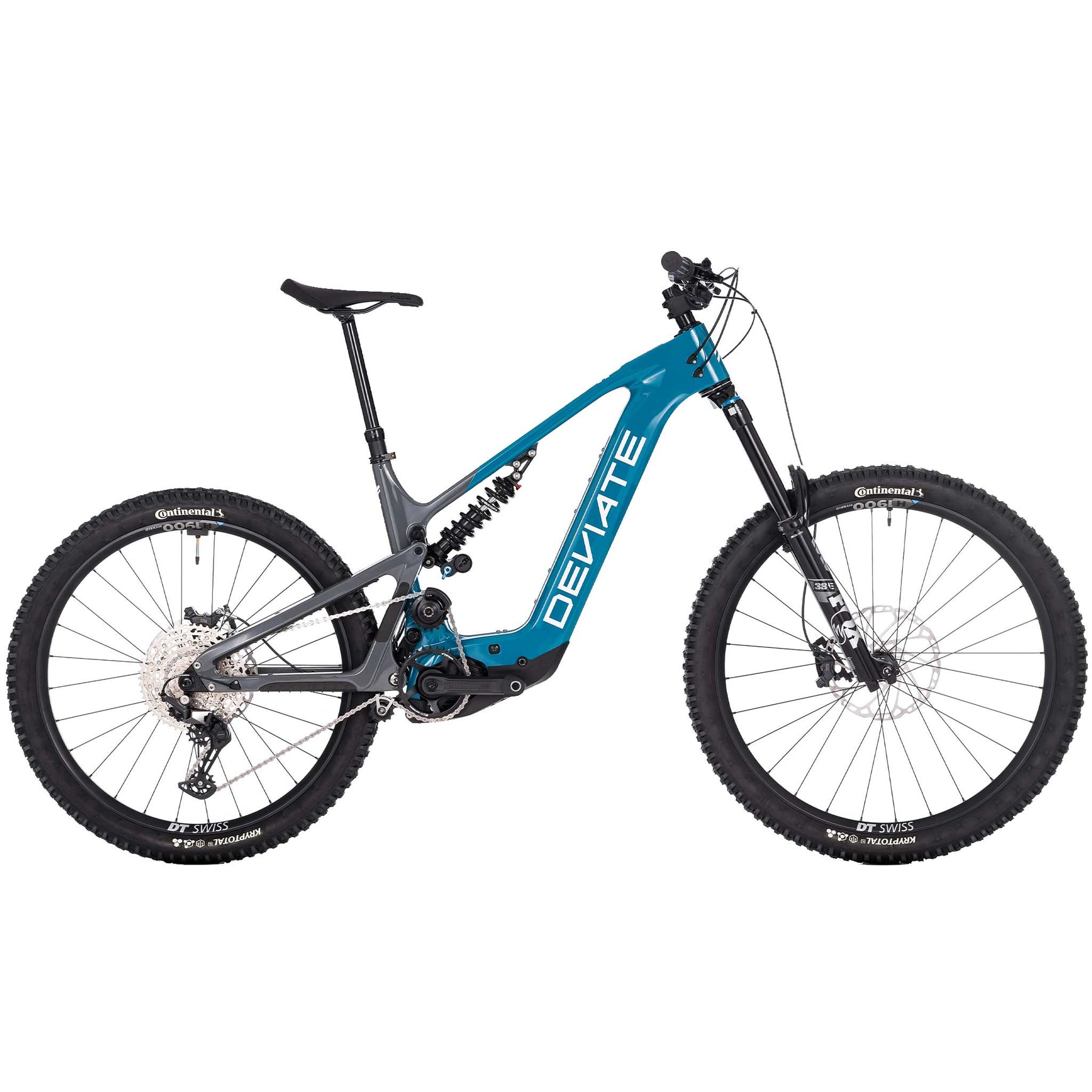

Deviate Kurgan Bosch Performance Line CX eMTB

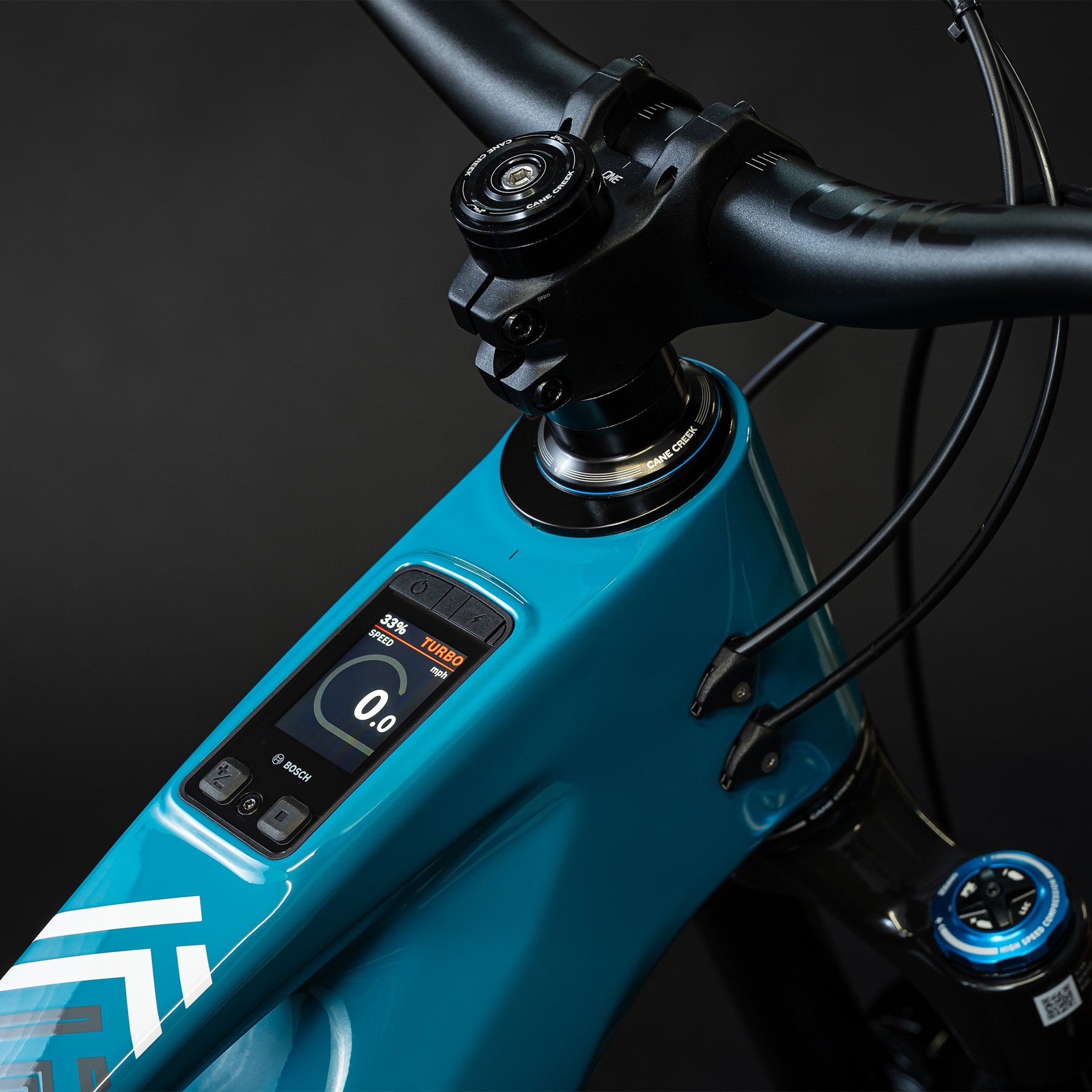

Deviate Kurgan Bosch Performance Line CX eMTB Kiox Display

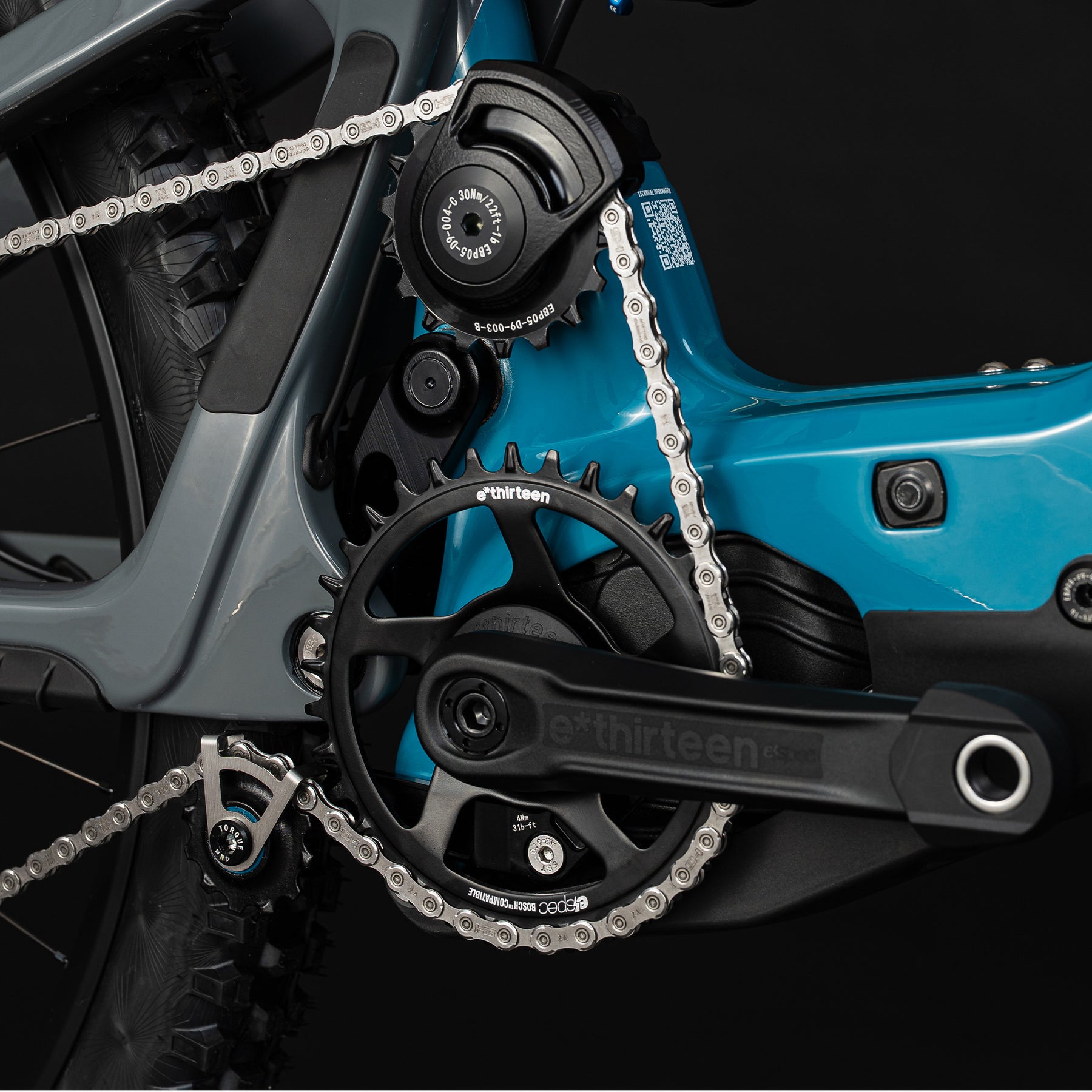

Deviate Kurgan Bosch Performance Line CX eMTB Drivetrain

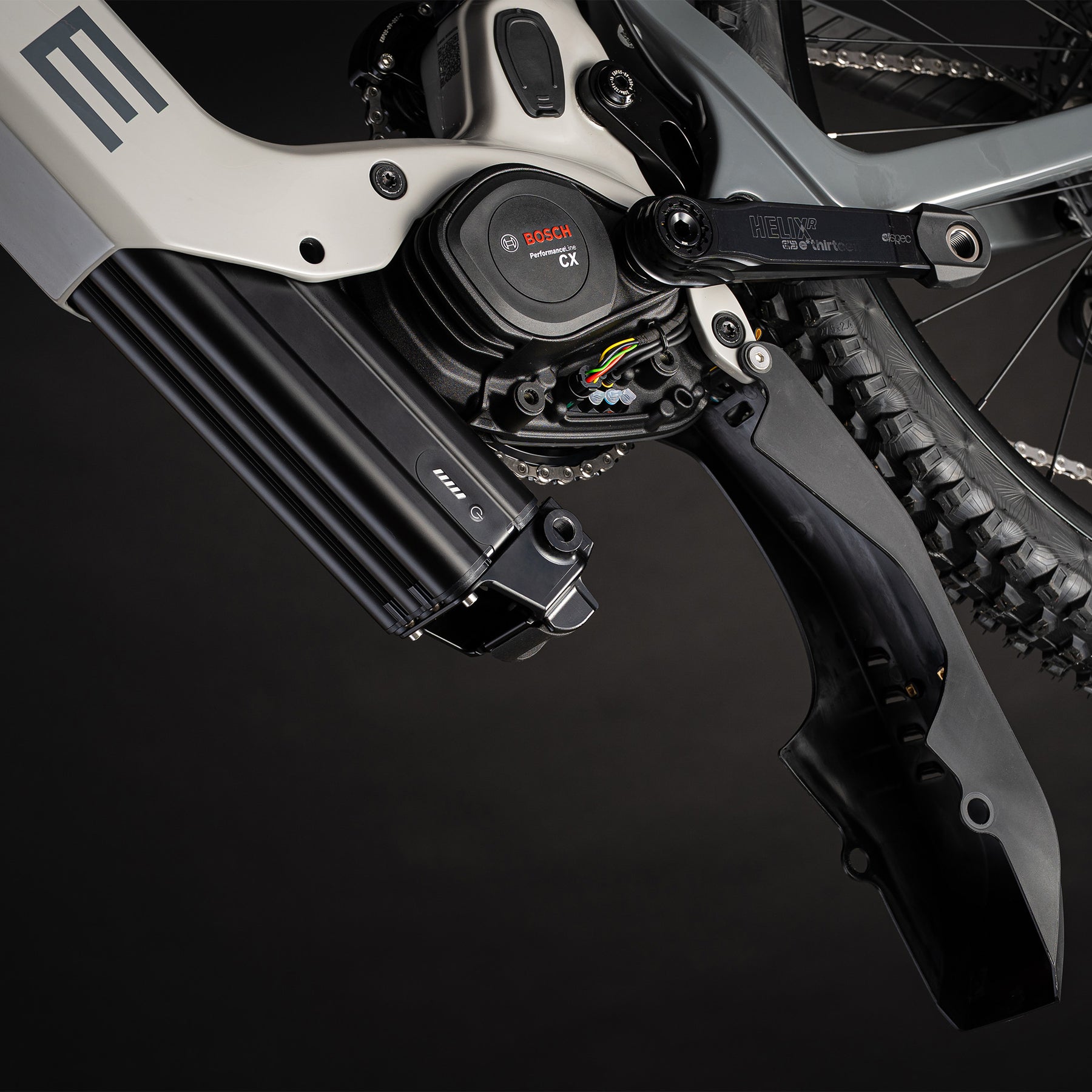

Deviate Kurgan Bosch Performance Line CX eMTB Removable Battery

£7,999.00

VAT included. Shipping calculated at checkout.

Size

Colour

Shiel Teal

We offer free UK delivery on all bikes unless bought through a Ride To Work Scheme.

We don't currently deliver complete bikes outside the UK.

Custom-built bikes can be delivered in kit form (for you to assemble) - we can include shipping to your country in your quote.

Pedals

[{"id":56228513284480,"title":"M \/ Shiel Teal","option1":"M","option2":"Shiel Teal","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kurgan Elite eBike - M \/ Shiel Teal","public_title":"M \/ Shiel Teal","options":["M","Shiel Teal"],"price":799900,"weight":30000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[{"price_adjustments":[],"price":799900,"compare_at_price":null,"per_delivery_price":799900,"selling_plan_id":712768422272,"selling_plan_group_id":"2645727475dc7531104e54cc8ea2abc0e732a963"}]},{"id":56228513350016,"title":"L \/ Shiel Teal","option1":"L","option2":"Shiel Teal","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kurgan Elite eBike - L \/ Shiel Teal","public_title":"L \/ Shiel Teal","options":["L","Shiel Teal"],"price":799900,"weight":30000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[{"price_adjustments":[],"price":799900,"compare_at_price":null,"per_delivery_price":799900,"selling_plan_id":712768422272,"selling_plan_group_id":"2645727475dc7531104e54cc8ea2abc0e732a963"}]},{"id":56228513415552,"title":"XL \/ Shiel Teal","option1":"XL","option2":"Shiel Teal","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kurgan Elite eBike - XL \/ Shiel Teal","public_title":"XL \/ Shiel Teal","options":["XL","Shiel Teal"],"price":799900,"weight":30000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[{"price_adjustments":[],"price":799900,"compare_at_price":null,"per_delivery_price":799900,"selling_plan_id":712768422272,"selling_plan_group_id":"2645727475dc7531104e54cc8ea2abc0e732a963"}]}]

Sale price bikes bought though Cycle To Work schemes will have a handling fee added.

This information is intended as a guide only.

Cycle To Work is a Government Initiative to encourage cycling to work. The idea is that by cycling to work, you get fitter and healthier, and at the same time reduce congestion and improve air quality.

In simplest terms, your employer pays for the bike, and you hire it from them through salary deductions. At the end of the hire period, the employer can sell you the bike. (Until the bike is paid for, you hire it from your employer, so don't get fired).

Your employer might administer the scheme themselves, or use a third party like one of the following:

GoGeta
Vivup
Green Commute Initiative
Cycle Solutions
My Benefits World
Cyclescheme

If your employer doesn't offer Cycle To Work as a benefit, you can send them this employer information from the Government that outlines how it all works.

For more information, click here to contact us or call 01330 828562.

Deviate's first eMTB has been six years in the making. At the core is a bike based on the award-winning Claymore, backed up with a 100nm Bosch motor and an 800wh battery.

The Kurgan is a bike for big days out on harsh terrain, with 165mm of virtual high-pivot rear suspension, matched to a 180mm Fox 38 fork. There's enough room in the frame for a water bottle as well as a range extender, and the battery is removable, reducing weight should you need to lift the bike.

Spec across the whole Deviate range is well-thought-out, with seemingly little compromises made to meet price targets. All the Elite spec bikes have Fox Performance Elite suspension, and Shimano drivetrains and 4 piston brakes.

Lifetime bearing replacement programme.
Lifetime frame warranty (for first owner).
Crash replacement policy.
Linkage bearing grease ports.

Specification

Frame	Kurgan Carbon Fibre, High Pivot, Integrated Display, Adjustable Reach/HT Angle, Removable Battery, Water Bottle & Range Extender Compatibility, 165 mm Travel, 34.9 mm Seatpost, 148x12mm Boost Rear Axle, 200 mm Post Mount Brake Mount
Front Suspension	Fox 38 Float Performance Elite Series, GRIP2 Damper, Adjustable HSC - LSC - HSR - LSR, 180mm Travel, 44 mm Offset, 29", 110x15 mm Boost Axle
Motor	Bosch Performance Line CX (100nm)
Battery	Bosch PowerTube 800Wh
Switch	Bosch Kiox 400C
Display	Bosch Kiox 400C, Dynamic Colour Display, USB-C Charging Port
Rear Suspension	Fox Float DHX2 Performance Elite, 2 Position Open/Firm Lever, Adjustable HSC - LSC - HSR - LSR, , 165 mm Travel
Front Wheel	29", DT Swiss H1900 Spline, 30 mm Internal Width, 32h, 110x15 mm Boost, 6 Bolt
Rear Wheel	27.5, DT Swiss H1900 Spline, 30 mm Internal Width, 32h 148x12mm Boost, 6 Bolt
Front Tyre	Continental Kryptotal Front Tyre, Downhill, Supersoft, 2.4", 29"
Rear Tyre	Continental Kryptotal Rear Tyre, Downhill, Supersoft, 2.4", 27.5
Derailleur	Shimano Deore M6100, SGS, Shadow+, 12 Speed
Shift Lever	Shimano Deore M6100-IR, Rapidfire Plus, I-Spec EV, 12 Speed

Crankset	e*13 Helix Core E-Spec, 155mm, 36T Chainring
Chain	Shimano Deore M6100, 12 Speed
Cassette	Shimano Deore M6100, HYPERGLIDE+, 10-51T, 12 Speed
Front Brake	Shimano XT M8200 4 Piston
Front Brake Rotor	Shimano SM-RT76, 223 mm, 6 Bolt
Rear Brake	Shimano XT M8200 4 Piston
Rear Brake Rotor	Shimano SM-RT76, 223mm, 6 Bolt
Handlebar	OneUp Aluminium Handlebars
Stem	OneUp Components Forged
Grips	Peaty's Monarch Mushroom Grips
Headset	Cane Creek 40 Integrated
Seatpost	SDG Tellis
Saddle	SDG Bel-Air 3 Lux-Alloy
Pedals
Charger
Extras
Weight

Geometry & Sizing

Deviate Kurgan Geometry
Sizes in mm	M	L	XL
A: Stack	635	645	655
B: Reach	455/460/465	475/480/485	500/505/510
C: Head Tube Angle	63.5°
D: Head Tube Length	99.6	110.7	121.8
E: Seat Tube Angle	78°	78°	78°
F: Seat Tube Length	410	430	450
G: Effective Top Tube	595	622	653
H: BB Height	340
I: BB Drop	8/27
J: Chainstay Length	441	445	450
K: Wheelbase	1246.2	1276.1	1309.9
L: Standover	658	674	681.5
M: Fork Offset	44
Seatpost Diameter	34.9
Seatpost Drop
Stem Length	42
Handlebar Size	780x35
Crank Length	155

Size	Rider Height
M	170cm – 180cm
L	177cm – 189cm
XL	186cm – 198cm
