Name: Kurgan Factory eBike
Brand: Deviate
Price: 9999.0 GBP
Availability: InStock

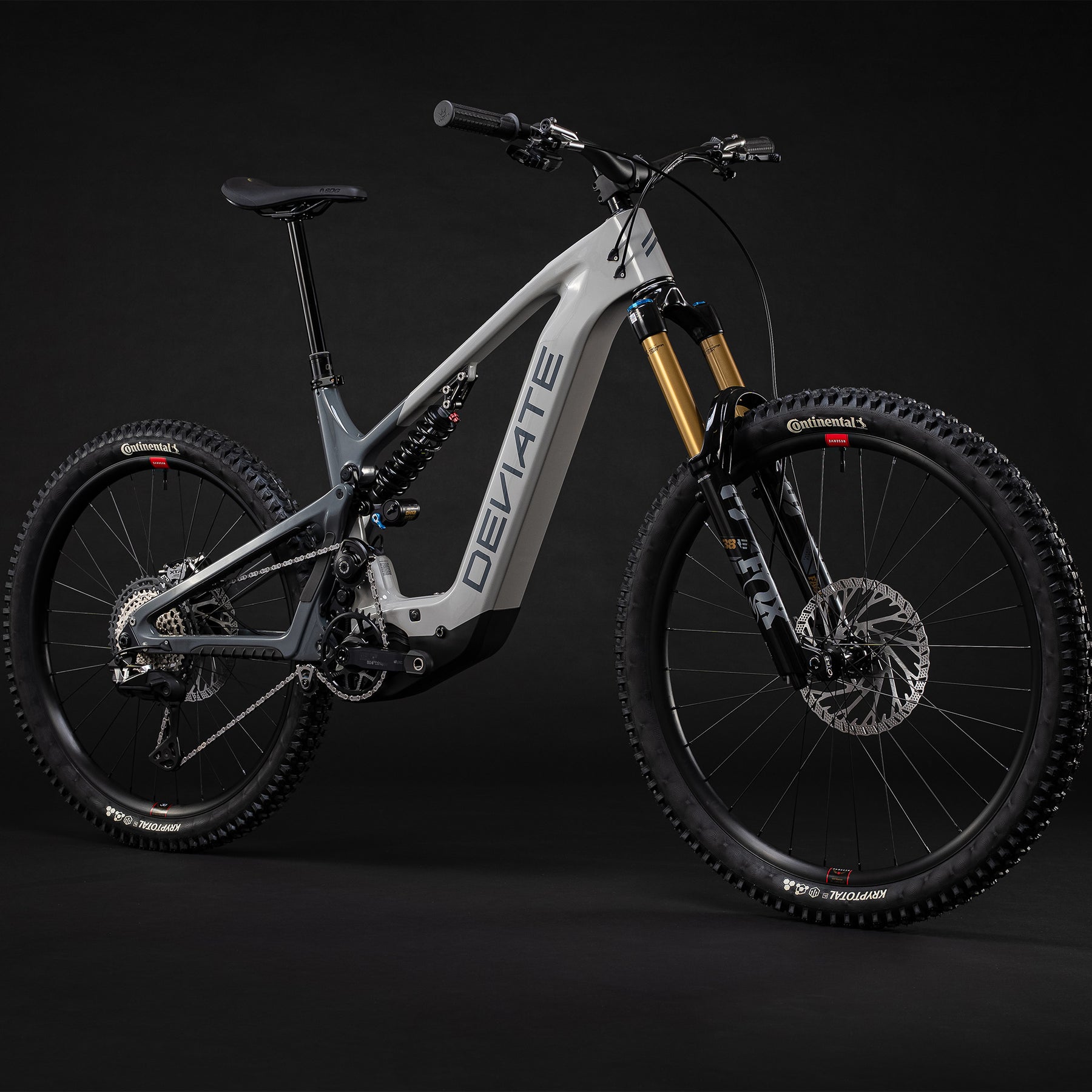

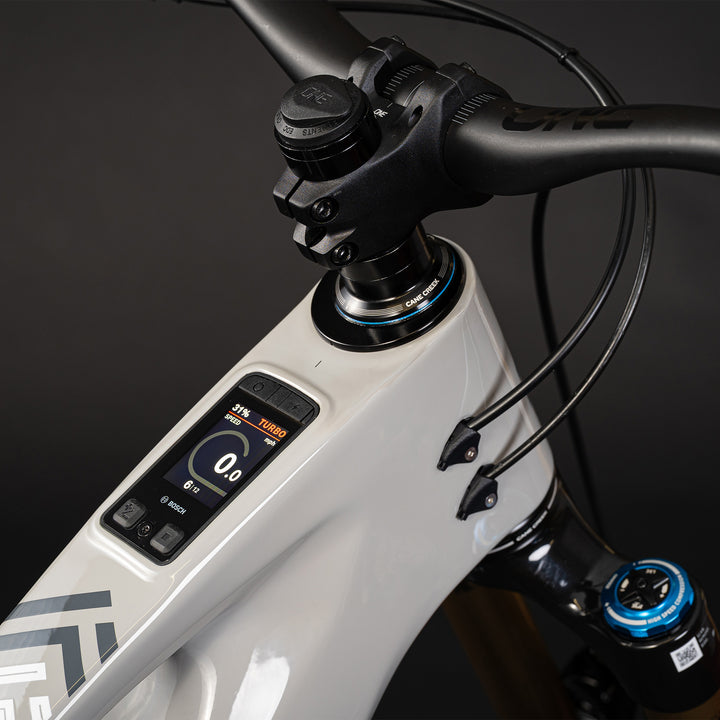

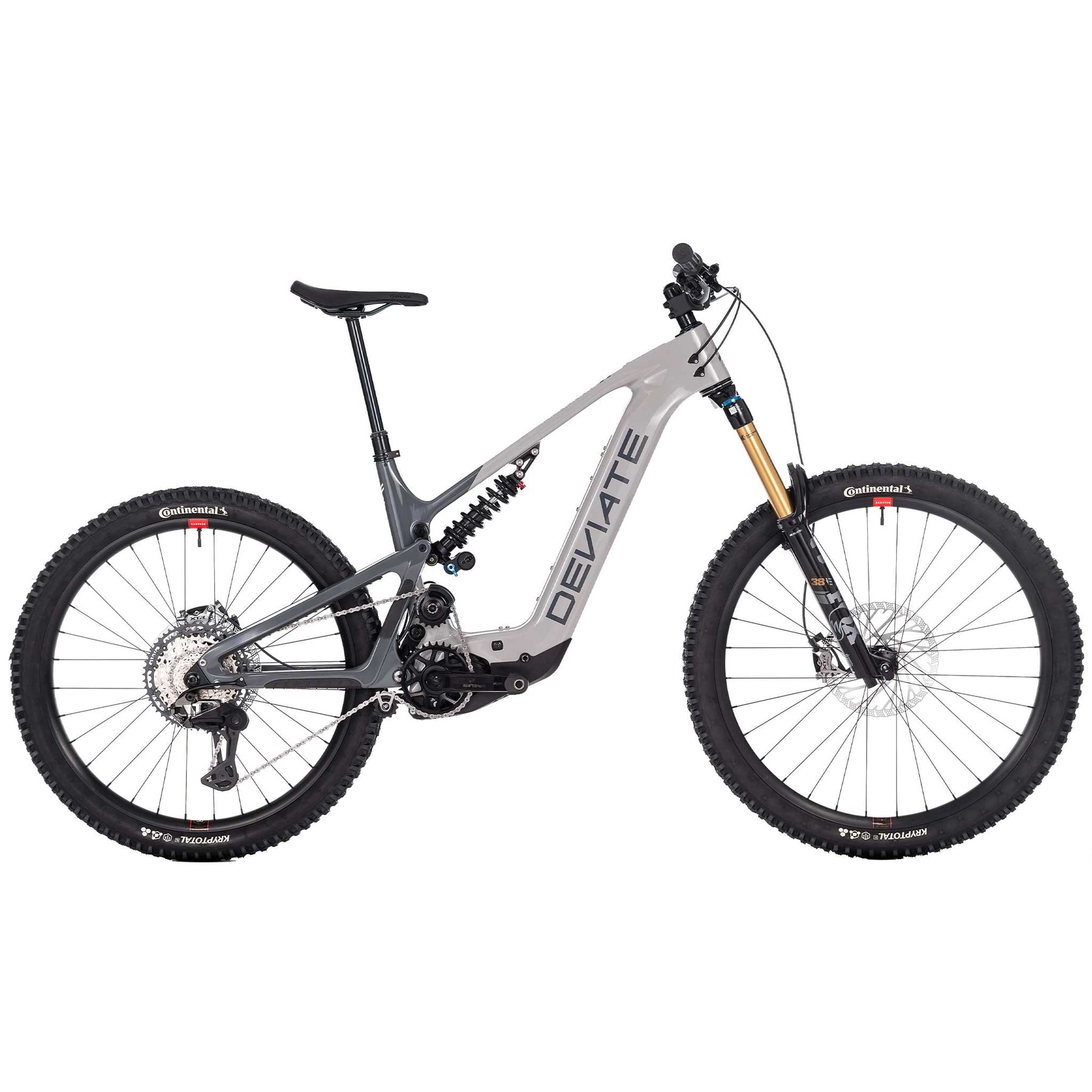

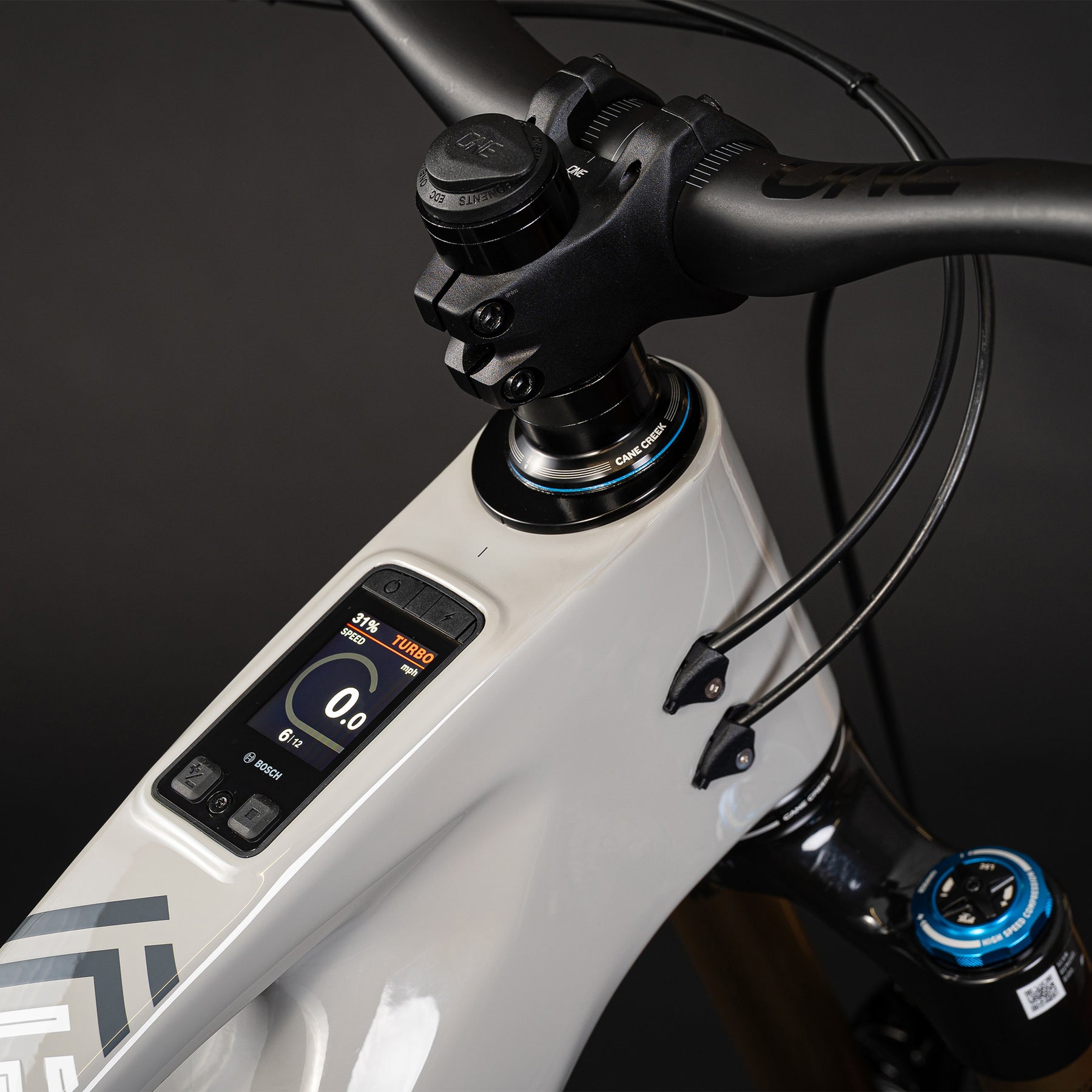

Deviate Kurgan Factory eMTB Grey Bosch Kiox Display

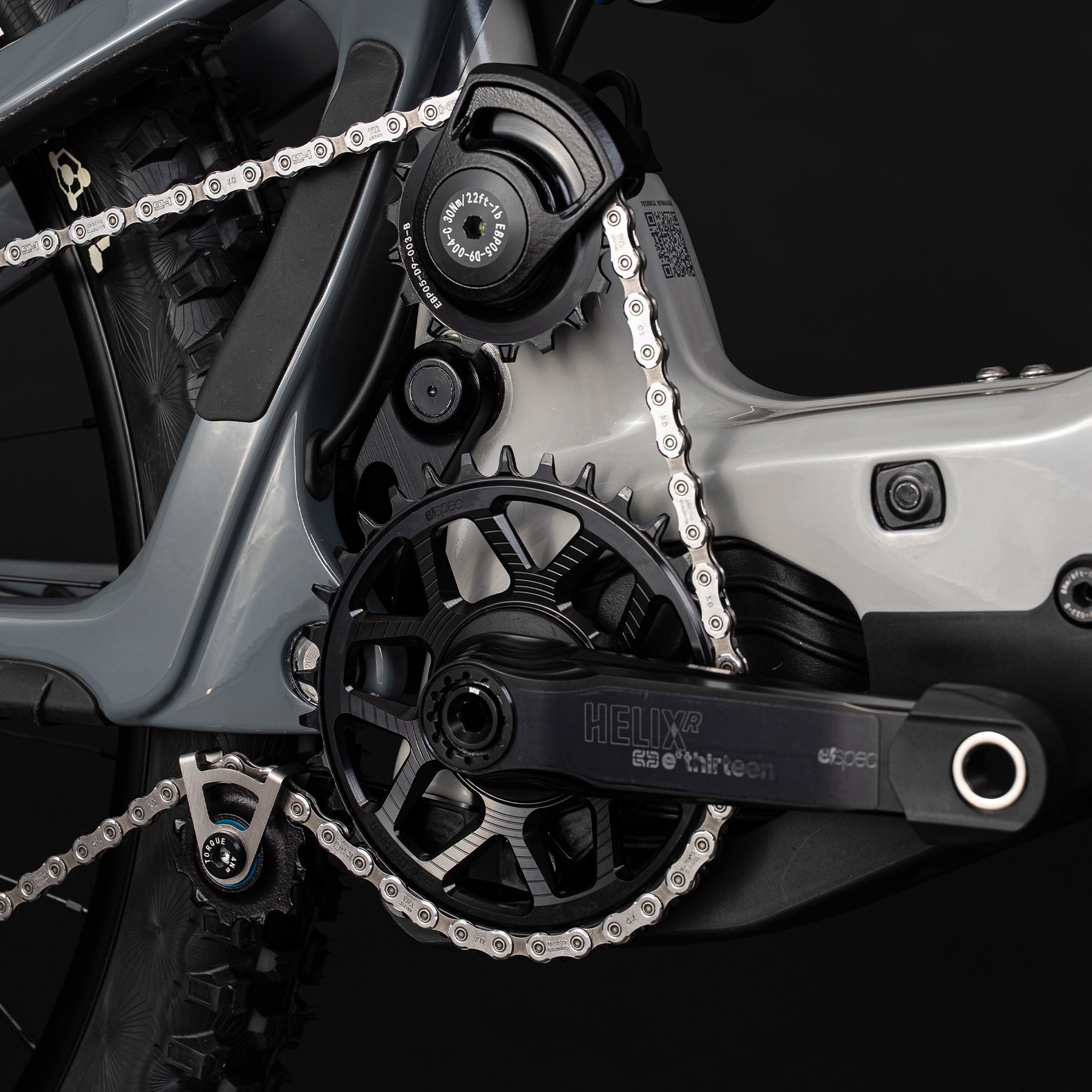

Deviate Kurgan Factory eMTB Grey Bosch Drivetrain

Deviate Kurgan Bosch Performance Line CX eMTB Removable Battery

£9,999.00

VAT included. Shipping calculated at checkout.

Size

Colour

Cairn Grey

We offer free UK delivery on all bikes unless bought through a Ride To Work Scheme.

We don't currently deliver complete bikes outside the UK.

Custom-built bikes can be delivered in kit form (for you to assemble) - we can include shipping to your country in your quote.

Pedals

[{"id":56227692642688,"title":"M \/ Cairn Grey","option1":"M","option2":"Cairn Grey","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kurgan Factory eBike - M \/ Cairn Grey","public_title":"M \/ Cairn Grey","options":["M","Cairn Grey"],"price":999900,"weight":30000,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[{"price_adjustments":[],"price":999900,"compare_at_price":null,"per_delivery_price":999900,"selling_plan_id":712768422272,"selling_plan_group_id":"2645727475dc7531104e54cc8ea2abc0e732a963"}]},{"id":56227692708224,"title":"L \/ Cairn Grey","option1":"L","option2":"Cairn Grey","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kurgan Factory eBike - L \/ Cairn Grey","public_title":"L \/ Cairn Grey","options":["L","Cairn Grey"],"price":999900,"weight":30000,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[{"price_adjustments":[],"price":999900,"compare_at_price":null,"per_delivery_price":999900,"selling_plan_id":712768422272,"selling_plan_group_id":"2645727475dc7531104e54cc8ea2abc0e732a963"}]},{"id":56227692773760,"title":"XL \/ Cairn Grey","option1":"XL","option2":"Cairn Grey","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kurgan Factory eBike - XL \/ Cairn Grey","public_title":"XL \/ Cairn Grey","options":["XL","Cairn Grey"],"price":999900,"weight":30000,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[{"price_adjustments":[],"price":999900,"compare_at_price":null,"per_delivery_price":999900,"selling_plan_id":712768422272,"selling_plan_group_id":"2645727475dc7531104e54cc8ea2abc0e732a963"}]}]

Sale price bikes bought though Cycle To Work schemes will have a handling fee added.

This information is intended as a guide only.

Cycle To Work is a Government Initiative to encourage cycling to work. The idea is that by cycling to work, you get fitter and healthier, and at the same time reduce congestion and improve air quality.

In simplest terms, your employer pays for the bike, and you hire it from them through salary deductions. At the end of the hire period, the employer can sell you the bike. (Until the bike is paid for, you hire it from your employer, so don't get fired).

Your employer might administer the scheme themselves, or use a third party like one of the following:

GoGeta
Vivup
Green Commute Initiative
Cycle Solutions
My Benefits World
Cyclescheme

If your employer doesn't offer Cycle To Work as a benefit, you can send them this employer information from the Government that outlines how it all works.

For more information, click here to contact us or call 01330 828562.

Deviate's first eMTB has been six years in the making. At the core is a bike based on the award-winning Claymore, backed up with a 100nm Bosch motor and an 800wh battery.

The Kurgan is a bike for big days out on harsh terrain, with 165mm of virtual high-pivot rear suspension, matched to a 180mm Fox 38 fork. There's enough room in the frame for a water bottle as well as a range extender, and the battery is removable, reducing weight should you need to lift the bike.

Spec across the whole Deviate range is well-thought-out, with seemingly little compromises made to meet price targets. Factory spec bikes have an XT/XTR Di2 drivetrain and XTR 4 piston brakes, along with OneUp v2 Carbon handlebars and V3 dropper post.

Lifetime bearing replacement programme.
Lifetime frame warranty (for first owner).
Crash replacement policy.
Linkage bearing grease ports.

Specification

Frame	Kurgan Carbon Fibre, High Pivot, Integrated Display, Adjustable Reach/HT Angle, Removable Battery, Water Bottle & Range Extender Compatibility, 165 mm Travel, 34.9 mm Seatpost, 148x12mm Boost Rear Axle, 200 mm Post Mount Brake Mount
Front Suspension	Fox 38 Float Factory Series, Kashima, GRIP X2 Damper, Adjustable HSC - LSC - HSR - LSR, 180mm Travel, 44 mm Offset, 29", 110x15 mm Boost Axle
Motor	Bosch Performance Line CX (100nm)
Battery	Bosch PowerTube 800Wh
Switch	Bosch Kiox 400C
Display	Bosch Kiox 400C, Dynamic Colour Display, USB-C Charging Port
Rear Suspension	Fox Float DHX2 Factory, 2 Position Open/Firm Lever, Adjustable HSC - LSC - HSR - LSR, , 165 mm Travel
Front Wheel	29", Hub: OneUp Front Hub, 110x15 mm Boost, 6 Bolt Rim: Reserve 30 HD AL 6069, 30mm Internal Width, 32H
Rear Wheel	27.5, Hub: OneUp Rear Hub44T Engagement, 148x12mm Boost, 6 Bolt Rim: Reserve 30 HD AL 6069, 30mm Internal Width, 32H
Front Tyre	Continental Kryptotal Front Tyre, Downhill, Supersoft, 2.4", 29"
Rear Tyre	Continental Kryptotal Rear Tyre, Downhill, Supersoft, 2.4", 27.5
Derailleur	Shimano XTR M9260 Di2 eMTB Mech
Shift Lever	Shimano XT Di2 SW-M8250, 12 Speed

Crankset	e*13 Helix Core Race E-Spec, 36T Chainring
Chain	Shimano XT M8100, 12 Speed
Cassette	Shimano XT CS-M8200, 10-51T, 12 Speed
Front Brake	Shimano XTR M9220, 4 Piston
Front Brake Rotor	Galfer Shark Brake Disc, 223 mm, 6 Bolt
Rear Brake	Shimano XTR M9220, 4 Piston
Rear Brake Rotor	Galfer Shark Brake Disc, 223mm, 6 Bolt
Handlebar	OneUp Components Carbon V2
Stem	OneUp Components Forged
Grips	Peaty's Monarch Mushroom Grips
Headset	Cane Creek Hellbender 70
Seatpost	OneUp Dropper Post V3
Saddle	SDG Bel-Air 3 Lux-Alloy
Pedals
Charger
Extras
Weight

Geometry & Sizing

Deviate Kurgan Geometry
Sizes in mm	M	L	XL
A: Stack	635	645	655
B: Reach	455/460/465	475/480/485	500/505/510
C: Head Tube Angle	63.5°
D: Head Tube Length	99.6	110.7	121.8
E: Seat Tube Angle	78°	78°	78°
F: Seat Tube Length	410	430	450
G: Effective Top Tube	595	622	653
H: BB Height	340
I: BB Drop	8/27
J: Chainstay Length	441	445	450
K: Wheelbase	1246.2	1276.1	1309.9
L: Standover	658	674	681.5
M: Fork Offset	44
Seatpost Diameter	34.9
Seatpost Drop
Stem Length	42
Handlebar Size	780x35
Crank Length	155

Size	Rider Height
M	170cm – 180cm
L	177cm – 189cm
XL	186cm – 198cm
