Tech 4 Spare Parts

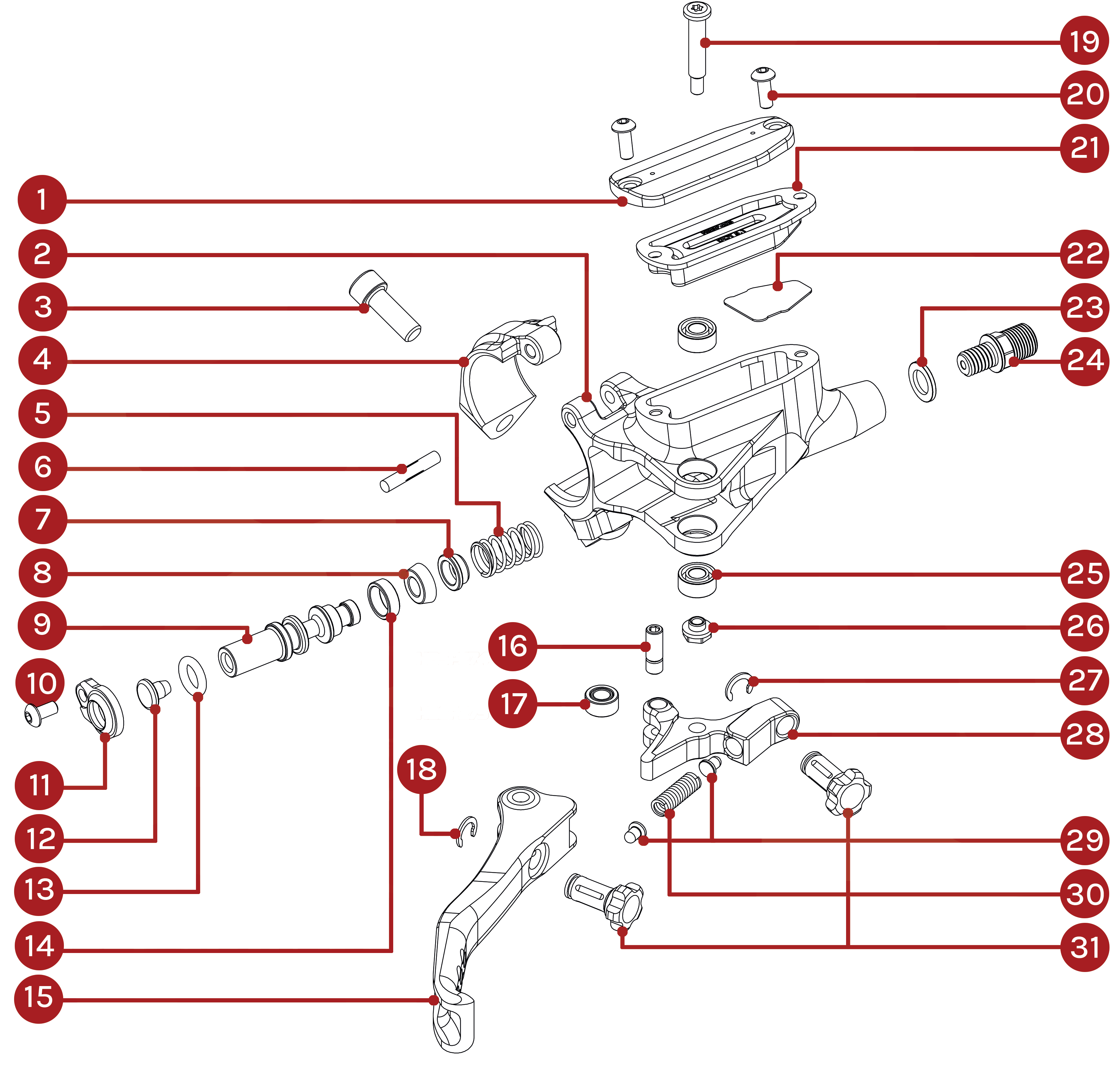

Identify the number of the part you require. Then find the number in the table below the diagram. The description of the item links to the product page for the item.
| Index | Quantity | Part No. | Description |
|---|---|---|---|
| 1 | 1 | HBSP424 | Tech 4 Lid |
| 2 | 1 | HBSP420 | Tech 4 M/Cylinder Body |
| 3 | 1 | M516 | Clamp Bolt |
| 4 | 1 | HBSP401N/S | Hinge Clamp Black/Hinge Clamp Silver |
| 5 | 1 | HBSP386 | Tech 4 M/Cyl Spring |
| 6 | 1 | HBSP387 | 18 mm Grooved Pin |
| 7 | 1 | HBSP412 | Spring Top Hat |
| 8 | 1 | HBSP408 | Hope Tech 4 Primary Seal |
| 9 | 1 | HBSP423 | Tech 4 M/Cyl Piston |
| 10 | 1 | M3X16 | Dome Head Screw |
| 11 | 1 | HBSP326 | Stop Plate |
| 12 | 1 | HBSP272 | Piston Insert |
| 13 | 1 | HBSP430 | Secondary Seal |
| 14 | 1 | HBSP407 | Piston Guide Bush |
| 15 | 1 | HBSP421 | Tech 4 Lever Blade |
| 16 | 1 | HBSP275 | Cam Roller Pin |
| 17 | 1 | HBSP275 | Cam Roller |
| 18 | 1 | HBPSP233 | Crescent Ring |
| 19 | 1 | HBSP425 | Tech 4 Pivot Bolt |
| 20 | 2 | M38DSSTQ | M3x8 Dome Head Screw |
| 21 | 1 | HBSP405 | Diaphragm |
| 22 | 1 | HBSP406 | Deflector Plate |
| 23 | 1 | HBSP026 | M6 Sealing Washer (Pack of 10) |
| 24 | 1 | HBSP163 | Straight Connector |
| 25 | 1 | S6842RS | Tech 4 Bearing Pivot (2 Required) |
| 26 | 1 | HBSP428 | Tech 4 Pivot Nut |
| 27 | 1 | HBSP233 | Crescent Ring |
| 28 | 1 | HBSP422 | Tech 4 Cam |
| 29 | 1 | HBSP319 | Brass Plunger |
| 30 | 1 | HBSP312 | Lever Spring |
| 31 | 1 | HBSP219 | Adjuster Screw (2 Required) |
