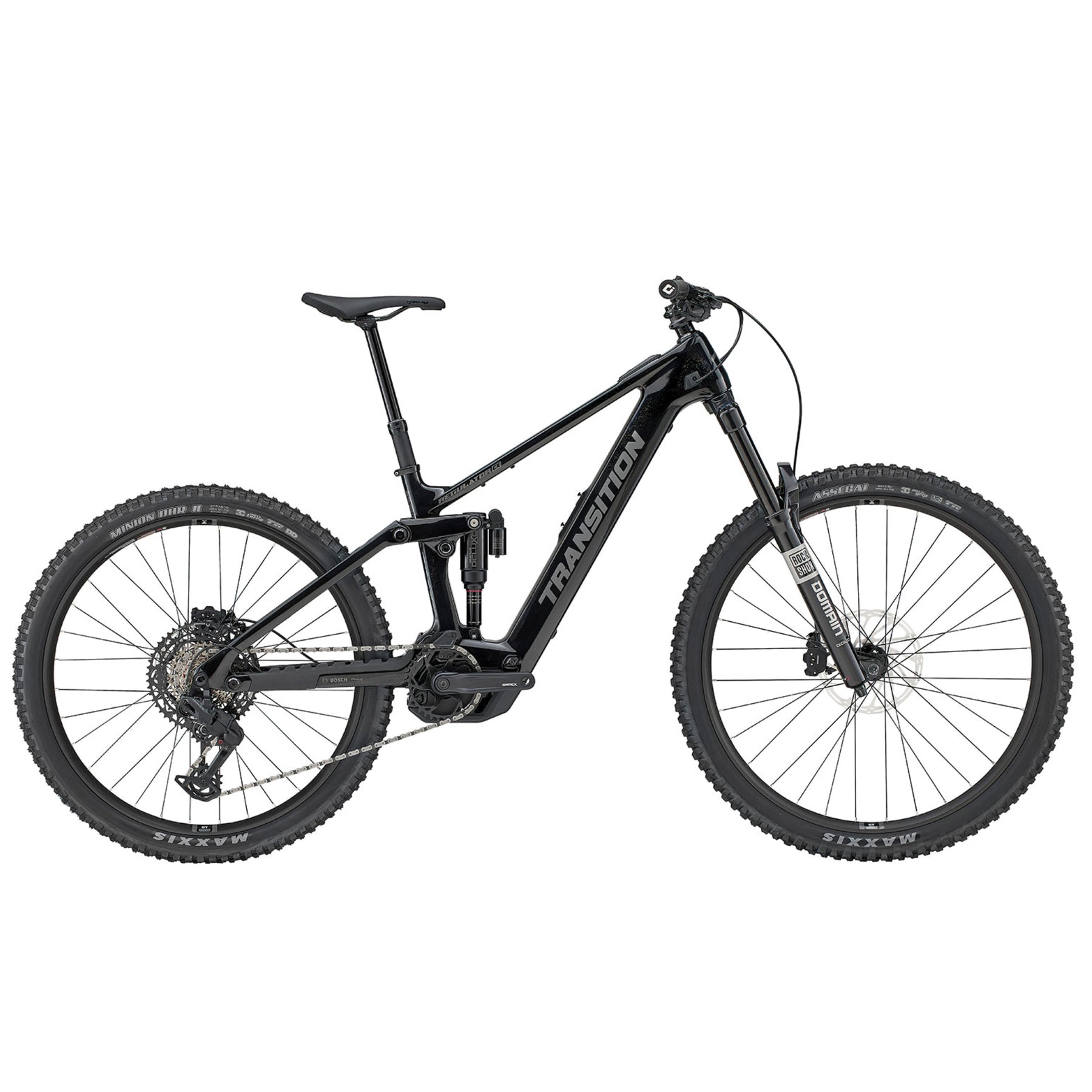

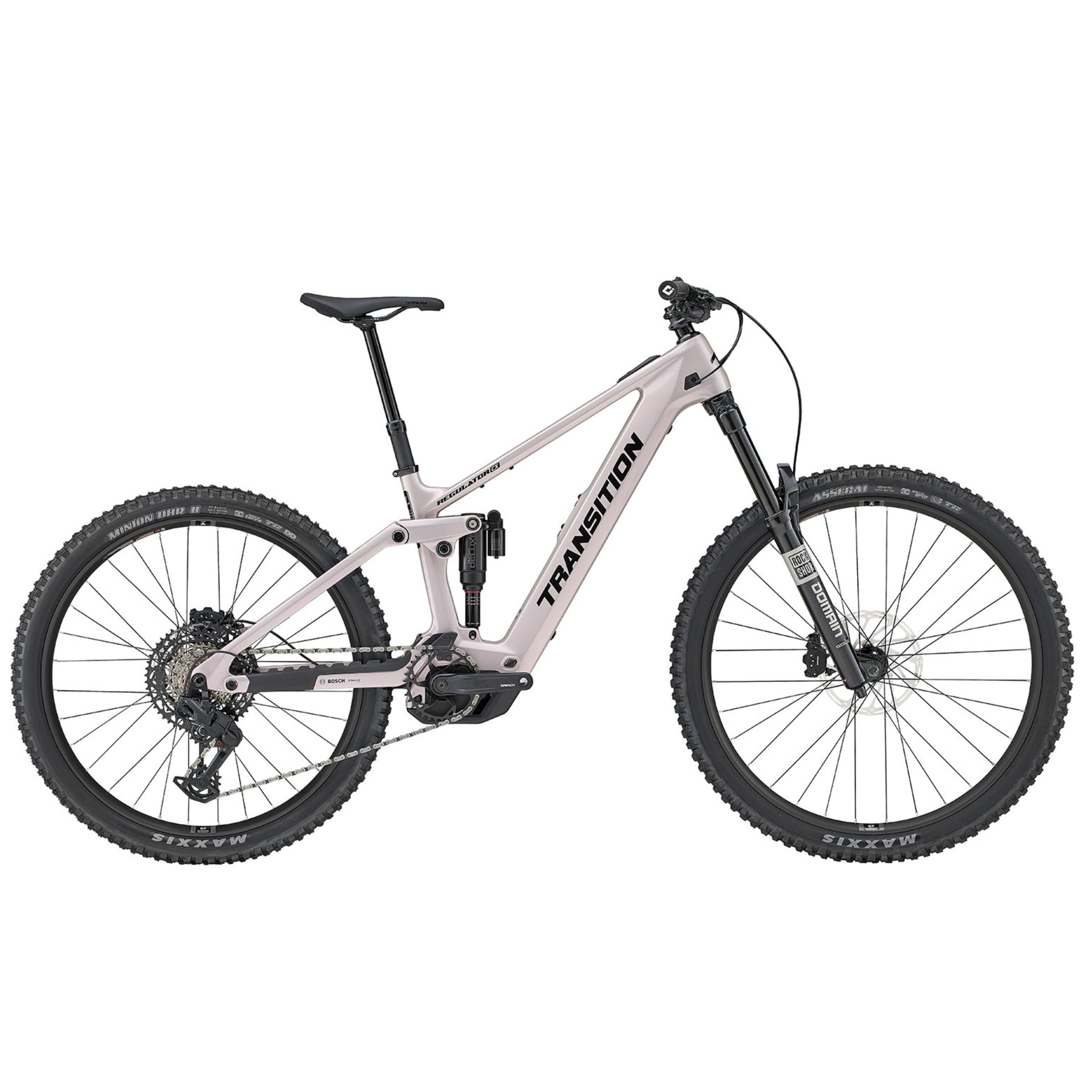

Transition offer two versions of the Bosch powered Regulator: CX for riders looking for power and range, and the SX for riders looking for an ebike that rides as much like a regular mountain bike as possible.
The Regulator CX uses the Bosch Performance Line CS motor which now has 120nm of torque, couple with a 600wh battery. A 250wh range extender is available.
Specification
| Frame | Regulator CX, Geo Adjustment Chip, Carbon Fibre, Custom Charge Port with Cover, Multi Option Intrnal Cable Routing, Intregrated Chainstay Protection, Pivot Mudguard, 150 mm Travel, 31.6 mm Seatpost, 148x12mm Boost Rear Axle, 180mm Post Mount Brake Mount |
| Front Suspension | ROCKSHOX Domain Gold, Isolator RC Damper, DebonAir Spring, 3 Position Adjustable Compression Damping, Adjustable Rebound Damping, 160mm Travel, 44 mm Offset, 29", 110x15 mm Boost Axle |
| Motor | Bosch Performance Line CX (120nm) |
| Battery | Bosch PowerTube 600Wh |
| Switch | Bosch BRC3300 Bluetooth Remote 22.2mm Clamp |
| Display | Bosch Kiox 400C, Dynamic Colour Display, USB-C Charging Port |
| Rear Suspension | ROCKSHOX Deluxe Select RT, Debonair Air Spring, 2 Position Open/Firm Lever, Adjustable Rebound, 205x60 Trunnion, 150 mm Travel |
| Front Wheel | 29", Hub: Novatec D791SB-B15. Rim: WTB STi30 TCS 2.0. Rim, 30 mm Internal Width, 32h, 110x15 mm Boost, 6 Bolt |
| Rear Wheel | 27.5, Hub: Novatec D902SB-B12, XD Driver. Rim: WTB STi30 TCS 2.0. Rim, 30 mm Internal Width, 32h 148x12mm Boost, 6 Bolt |
| Front Tyre | Maxxis Assegai 2.5", 3C MaxxGrip, EXO+, TR, 29" |
| Rear Tyre | Maxxis Minion DHR II 2.4" WT, 3C MaxxTerra, DD TR, 27.5 |
| Derailleur | SRAM Eagle 70 Transmission, 12 Speed |
| Shift Lever | SRAM Eagle 70, 12 Speed |
| Crankset | Samox EC39, 150mm, 34T Chainring |
| Chain | SRAM Eagle 70, 12 Speed |
| Cassette | SRAM XS1270 Eagle T-Type, 10-52T, 12 Speed |
| Front Brake | SRAM Maven Bronze, 4 Piston |
| Front Brake Rotor | Shimano SM-RT66, 203 mm, 6 Bolt |
| Rear Brake | SRAM Maven Bronze, 4 Piston |
| Rear Brake Rotor | SRAM Centreline 2.0, 200 mm, 6 Bolt |
| Handlebar | RaceFace Chester 35 mm Diameter |
| Stem | RaceFace Aeffect R |
| Grips | ODI Elite Flow |
| Headset | FSA No 57E, Sealed Cartridge Bearings |
| Seatpost | SDG Tellis |
| Saddle | SDG Bel Air 3 |
| Pedals | |
| Charger | Bosch EB12.110.016; 2A |
| Extras | |
| Weight | - |
Geometry & Sizing
| Transition Regulator CX Geometry High/Low |
||||
|---|---|---|---|---|
| Sizes in mm | S | M | L | XL |
| A: Stack | 623/628 | 632/637 | 641/646 | 651/656 |
| B: Reach | 425/420 | 455/450 | 480/475 | 510/505 |
| C: Head Tube Angle |
64.5/64° | |||
| D: Head Tube Length |
105 | 110 | 125 | 135 |
| E: Effective Seat Tube Angle |
78.8/78.3° | 78.5/78° | 78.2/77.7° | 77.9/77.4° |
| F: Seat Tube Length |
375 | 400 | 440 | 470 |
| G: Effective Top Tube |
551/554 | 583/587 | 610/615 | 643/648 |
| H: BB Height | 350/345 | |||
| I: BB Drop | 25/20 | |||
| J: Chainstay Length | 442/444 | 442/444 | 448/450 | 448/450 |
| K: Wheelbase | 1201/1203 | 1235/1237 | 1271/1273 | 1305/1307 |
| L: Standover | ||||
| M: Fork Offset | 44 | |||
| Seatpost Diameter | 31.6 | |||
| Seatpost Drop | 150 | 170 | 200 | 230 |
| Stem Length | 40 | |||
| Handlebar Size | 780x20 | 750x35 | 780x35 | 780x35 |
| Crank Length | 150 | |||
