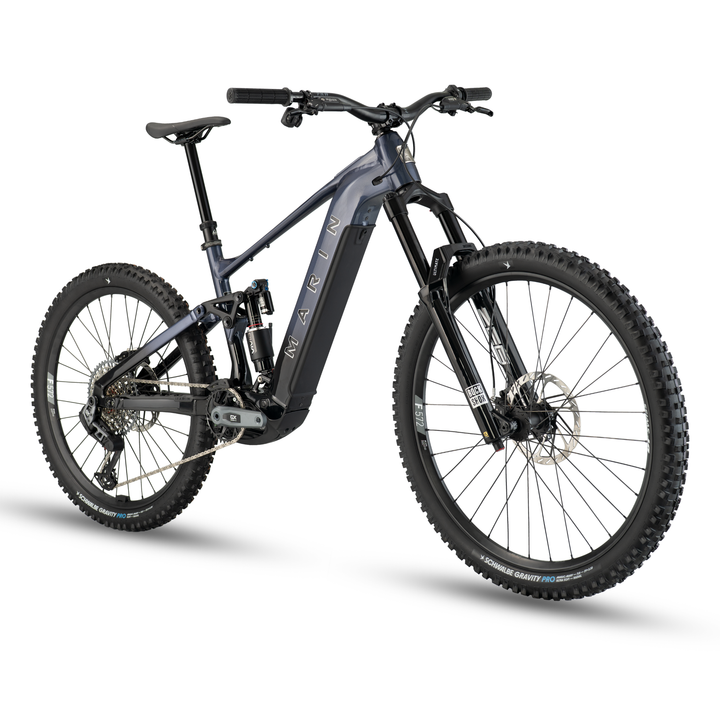

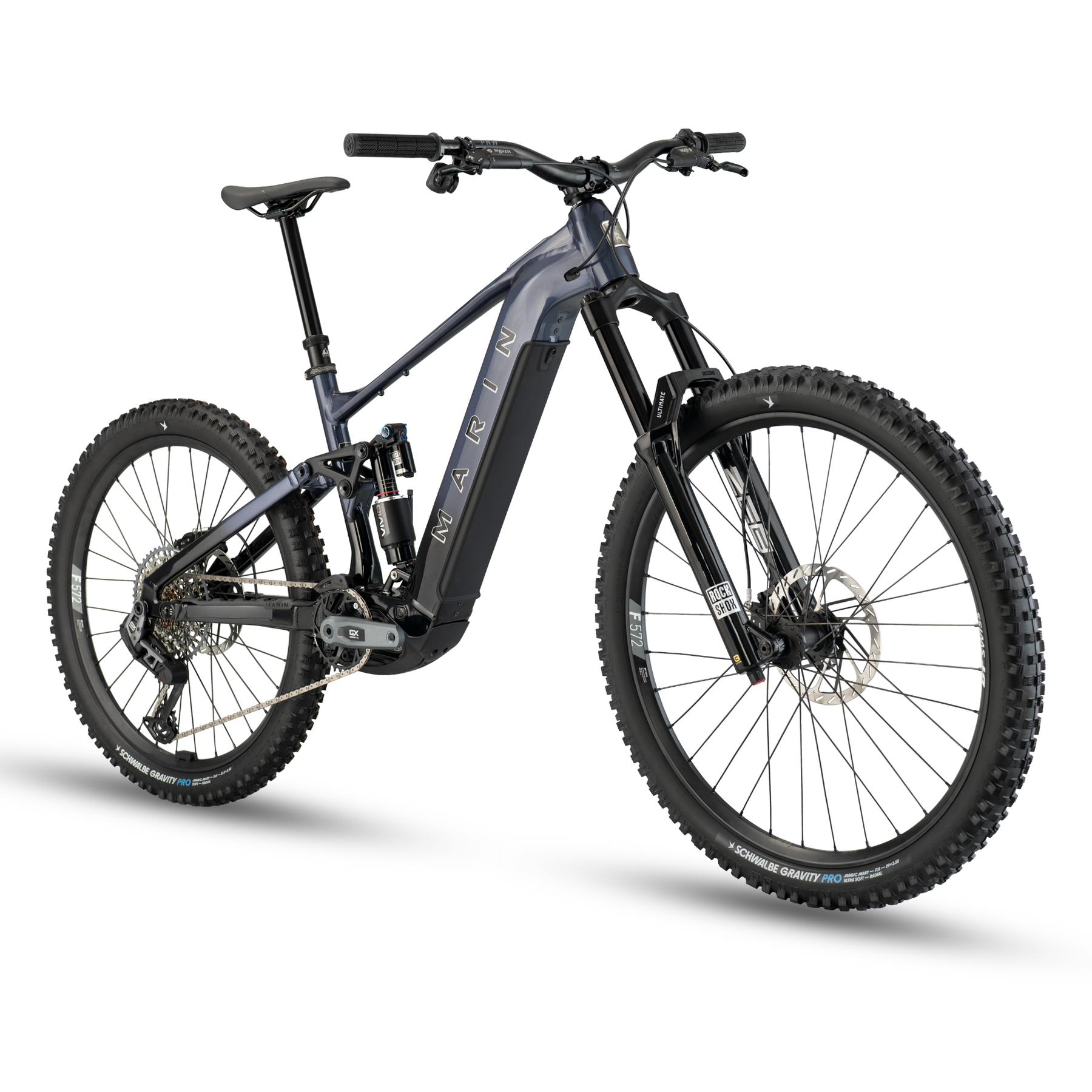

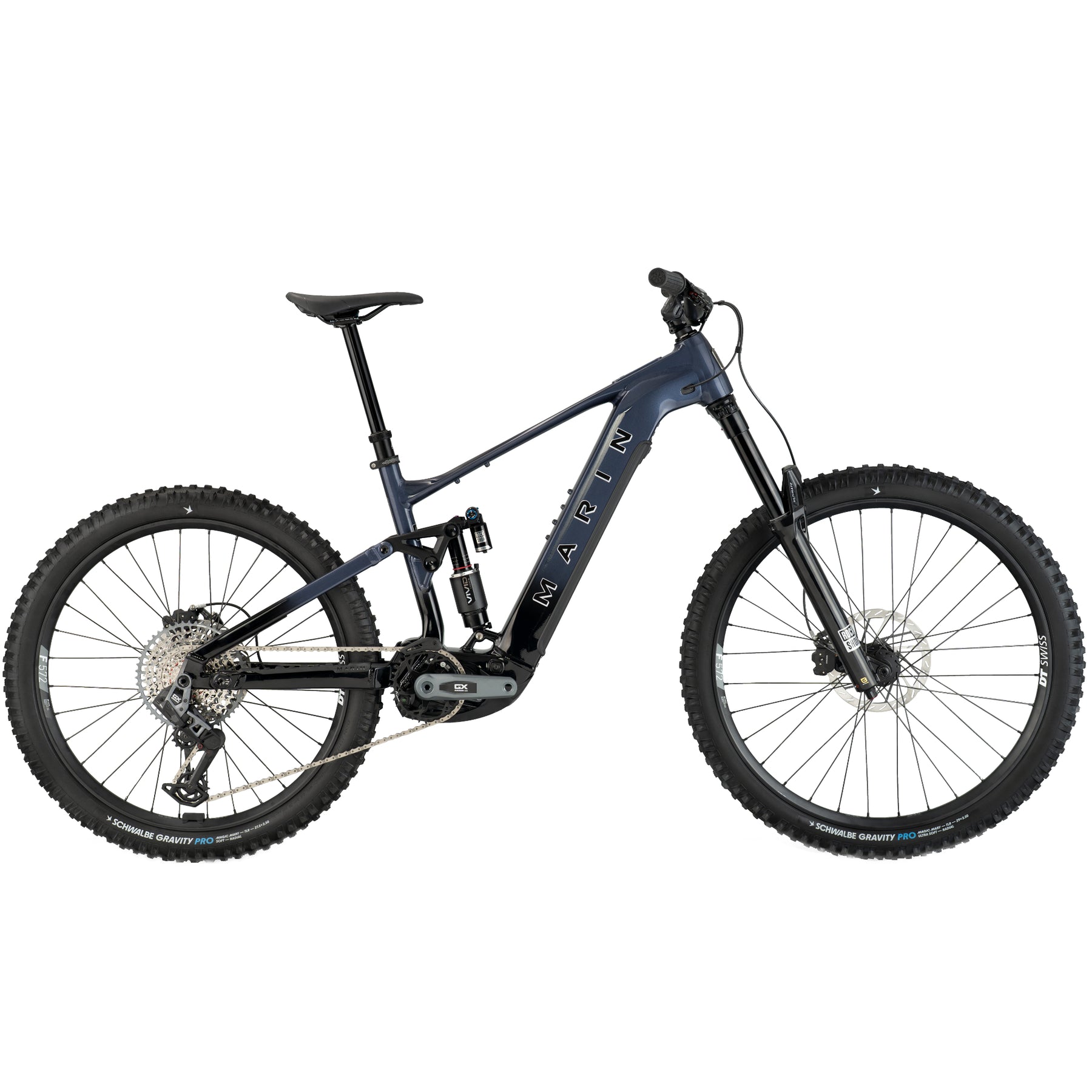

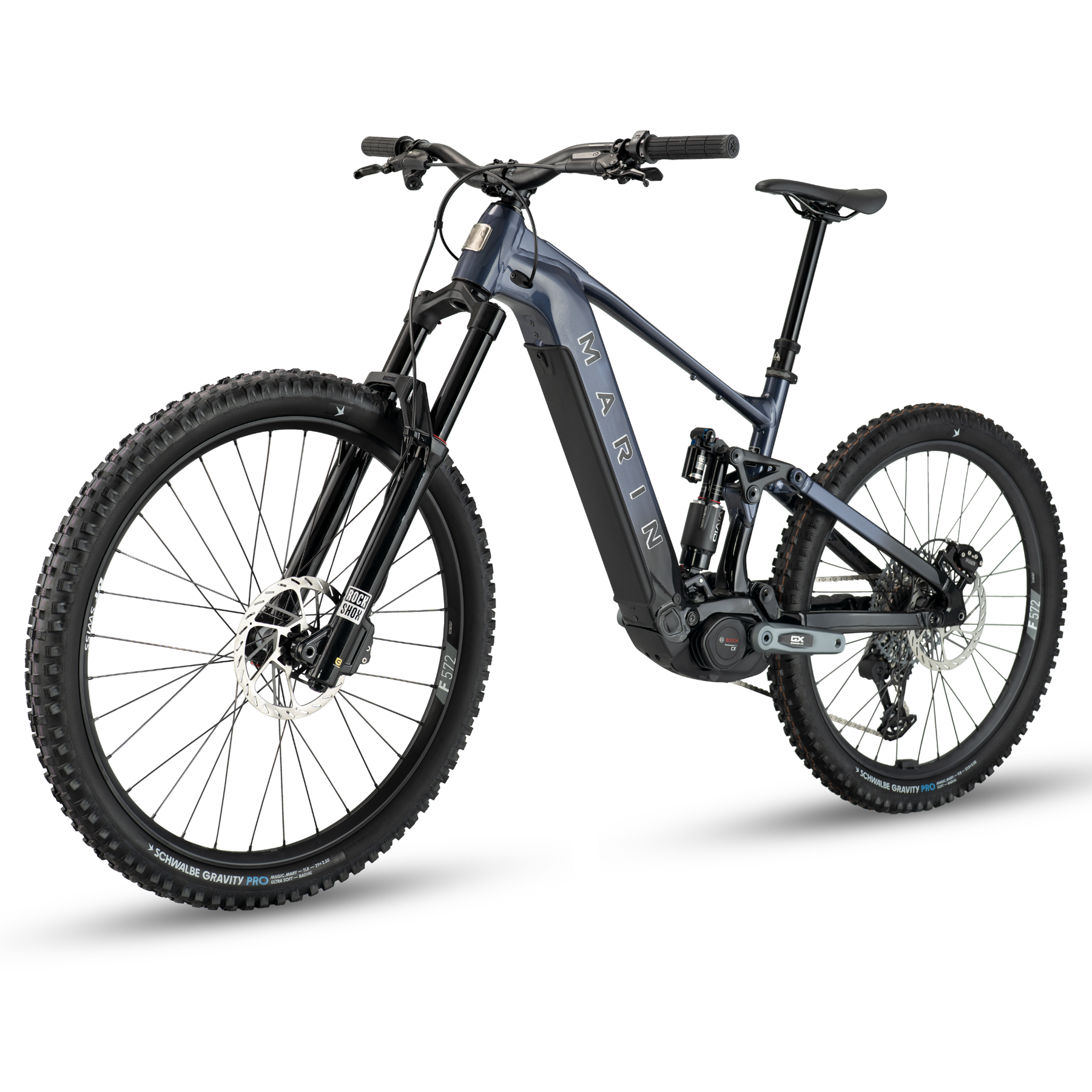

Marin Alpine Trail EXR electric mountain bike

Marin Alpine Trail EXR electric mountain bike Front

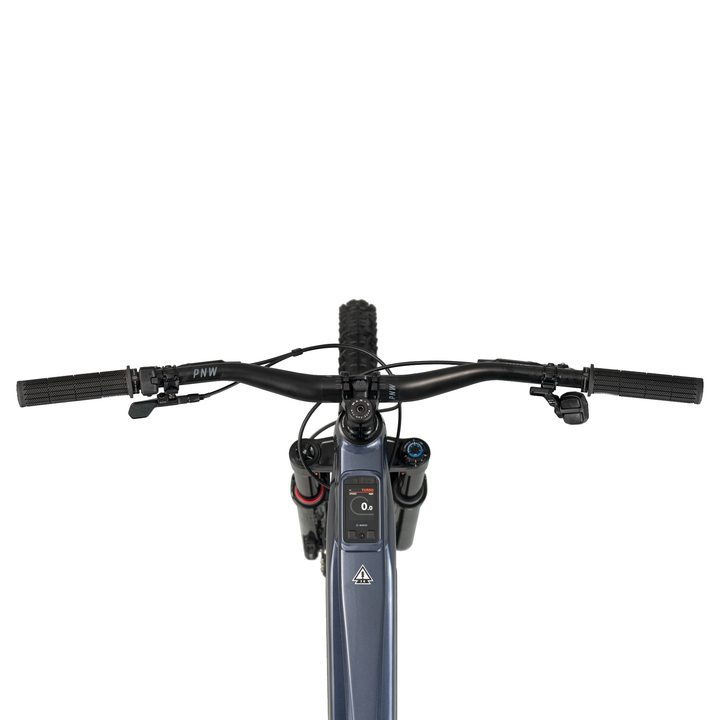

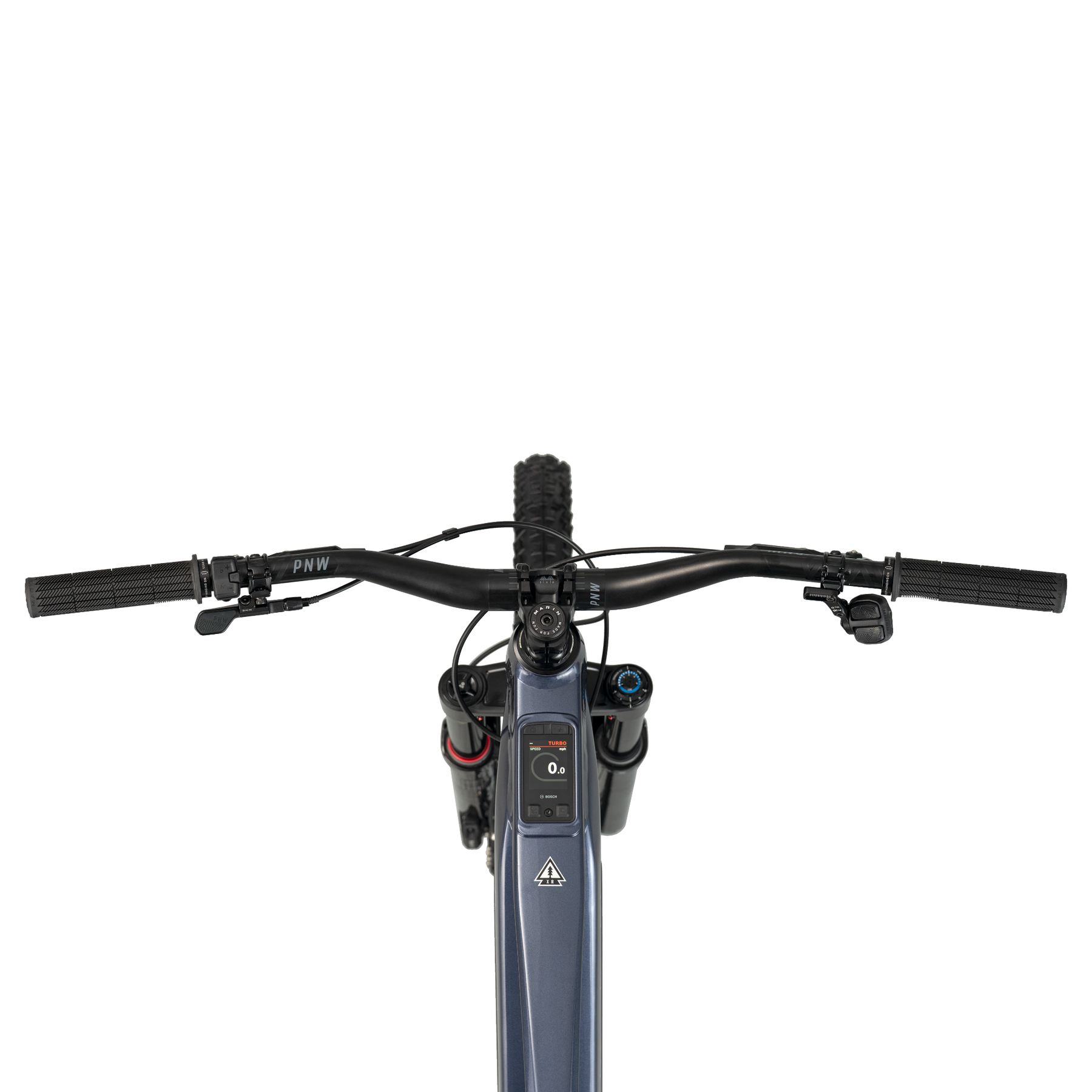

Marin Alpine Trail EXR electric mountain bike cockpit

£6,899.00

Tax included. Shipping calculated at checkout.

We offer free UK delivery on all bikes & ebikes except Trek, unless bought through a Ride To Work Scheme.

We don't deliver complete bikes or ebikes outside the UK.

Trek Bikes

Over £1000: Free Scottish Mainland Delivery
Under £1000: £50 Scottish Mainland Delivery

Pedals

[{"id":58255664382336,"title":"S \/ Silver","option1":"S","option2":"Silver","option3":null,"sku":"739065001","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Alpine Trail EXR eBike - S \/ Silver","public_title":"S \/ Silver","options":["S","Silver"],"price":689900,"weight":30000,"compare_at_price":639900,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[{"price_adjustments":[],"price":689900,"compare_at_price":639900,"per_delivery_price":689900,"selling_plan_id":738745024896,"selling_plan_group_id":"78bf5001497bf8c6dd02fd95183bb958d0fe178e"}],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":58255065743744,"title":"M \/ Silver","option1":"M","option2":"Silver","option3":null,"sku":"739065002","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Alpine Trail EXR eBike - M \/ Silver","public_title":"M \/ Silver","options":["M","Silver"],"price":689900,"weight":30000,"compare_at_price":639900,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[{"price_adjustments":[],"price":689900,"compare_at_price":639900,"per_delivery_price":689900,"selling_plan_id":738745024896,"selling_plan_group_id":"78bf5001497bf8c6dd02fd95183bb958d0fe178e"}],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":58255065776512,"title":"L \/ Silver","option1":"L","option2":"Silver","option3":null,"sku":"739065003","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Alpine Trail EXR eBike - L \/ Silver","public_title":"L \/ Silver","options":["L","Silver"],"price":689900,"weight":30000,"compare_at_price":639900,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[{"price_adjustments":[],"price":689900,"compare_at_price":639900,"per_delivery_price":689900,"selling_plan_id":738745024896,"selling_plan_group_id":"78bf5001497bf8c6dd02fd95183bb958d0fe178e"}],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":58255065809280,"title":"XL \/ Silver","option1":"XL","option2":"Silver","option3":null,"sku":"739065004","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Alpine Trail EXR eBike - XL \/ Silver","public_title":"XL \/ Silver","options":["XL","Silver"],"price":689900,"weight":30000,"compare_at_price":639900,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[{"price_adjustments":[],"price":689900,"compare_at_price":639900,"per_delivery_price":689900,"selling_plan_id":738745024896,"selling_plan_group_id":"78bf5001497bf8c6dd02fd95183bb958d0fe178e"}],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Sale price bikes bought though Cycle To Work schemes will have a handling fee added.

This information is intended as a guide only.

Cycle To Work is a Government Initiative to encourage cycling to work. The idea is that by cycling to work, you get fitter and healthier, and at the same time reduce congestion and improve air quality.

In simplest terms, your employer pays for the bike, and you hire it from them through salary deductions. At the end of the hire period, the employer can sell you the bike. (Until the bike is paid for, you hire it from your employer, so don't get fired).

Your employer might administer the scheme themselves, or use a third party like one of the following:

GoGeta
Vivup
Green Commute Initiative
Cycle Solutions
My Benefits World
Cyclescheme

If your employer doesn't offer Cycle To Work as a benefit, you can send them this employer information from the Government that outlines how it all works.

For more information, click here to contact us or call 01330 828562.

A ground up redesign sees the Bosch powered Alpine Trail E lose 3kg, while retaining its adjustability and 800wh battery.

The full Alpine Trail E range is supplied with a 27.5 rear wheel, but the geo can be altered to suit 29" wheels front and back. Other than a wheel, no additional parts are required, just use the built-in flip chips, which have laser etched numbers to show their settings.

The XR brings the latest Zeb and Vivid Air suspension, in the top of the range, fully adjustable Ultimate specification. Other spec highlights include SRAM's super powerful Maven Silver brakes and GX AXS T-Type electronic shifting.

Specification

Frame	Series 4 6061 Aluminum, Adjustable Chainstay Length, Adjustable Headtube Angle, Integrated Battery/Charging Port, Built-In Speed Sensor, MultiTrac Suspension Platform, Moulded Chainstay Protector, 160 mm Travel, 34.9 mm Seatpost, 148x12mm Boost Rear Axle, 180mm Post Mount Brake Mount
Front Suspension	ROCKSHOX Zeb Ultimate B1, Adjustable HSC-LSC-HSR-LSR, LinearXL Airspring, Adjustable Bottom Out, 170mm Travel, 44 mm Offset, 29", 110x15 mm Boost Axle
Motor	Bosch Performance Line CX (120nm)
Battery	Bosch PowerTube 800Wh
Switch	Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
Display	Bosch Kiox 400C, Dynamic Colour Display, USB-C Charging Port
Rear Suspension	ROCKSHOX Vivid Ultimate, 2 Position Open/Firm Lever, TouchDown RCT Damper with Adjustable Hydraulic Bottom Out, Adjustable HSC, LSC and Rebound Damping, DebonAir, 205x65 Trunnion, 160 mm Travel
Front Wheel	29", Hub: DT Swiss 370 Hybrid, 110x15 mm Boost, 6 Bolt Rim: DT Swiss H552, 30mm Internal Width, 32H
Rear Wheel	27.5, Hub: DT Swiss 370 Hybrid, 148x12mm Boost, 6 Bolt Rim: DT Swiss H552, 30mm Internal Width, 32H
Front Tyre	Schwalbe Magic Mary Gravity Pro Radial Super Gravity, Ultra Soft, 2.4", 29"
Rear Tyre	Schwalbe Magic Mary Gravity Pro Radial 2.5" Soft, 27.5
Derailleur	SRAM GX AXS Eagle T-Type, 12 Speed
Shift Lever	SRAM AXS POD, Eagle T-Type, 12 Speed

Crankset	SRAM GX Eagle eMTB, 34T Chainring
Chain	SRAM GX Eagle T-Series Flat Top, 12 Speed
Cassette	SRAM GX Eagle XS1275 T-Type, 10-52T, 12 Speed
Front Brake	SRAM Maven Silver, 4 Piston
Front Brake Rotor	SRAM HSC, 200 mm, 6 Bolt
Rear Brake	SRAM Maven Silver, 4 Piston
Rear Brake Rotor	SRAM HSC, 200 mm, 6 Bolt
Handlebar	Marin Trail Bar, 7000 Alloy, 35 mm Diameter, 20mm Rise, 5º Up, 8º Back
Stem	Marin CNC
Grips	Marin Grizzly Lock On
Headset	FSA Custom, Adjustable
Seatpost	PNW Loam Gen 2
Saddle	Marin Short Nose
Pedals
Charger	Bosch EB12.110.016; 2A
Extras	ethirteen eSpec Chainguide
Weight

Geometry & Sizing

Measurement (MM)	S	M	L	XL
Marin Alpine Trail EXR Geometry
A: Stack	620	634	643	647
B: Reach	430	460	490	520
C: Head Tube Angle	63.5°	63.5°	63.5°	63.5°
D: Head Tube Length	110	115	125	130
E: Effective Seat Tube Angle	79°	79°	79°	79°
F: Seat Tube Length	400	420	430	450
G: Effective Top Tube	556	592	626	659
H: BB Height	352	352	352	352
I: BB Drop	24/7	24/7	24/7	24/7
J: Chainstay Length	442	442	442	442
K: Wheelbase	1211	1248	1283	1318
L: Standover	683	690	695	698
M: Fork Offset	44	44	44	44
Seatpost Drop	150	170	200	200
Stem Length	35	35	35	35
Handlebar Size	800x38	800x38	800x38	800x38
Crank Length	160	160	160	160

Bike Size	S	M	L	XL
Marin Alpine Trail E Size Guide
Rider Height	157-168cm 5'2"-5'6"	168-175cm 5'6"-5'9"	175-185cm 5'9"-6'1"	185-193cm 6'1"-6'4"
