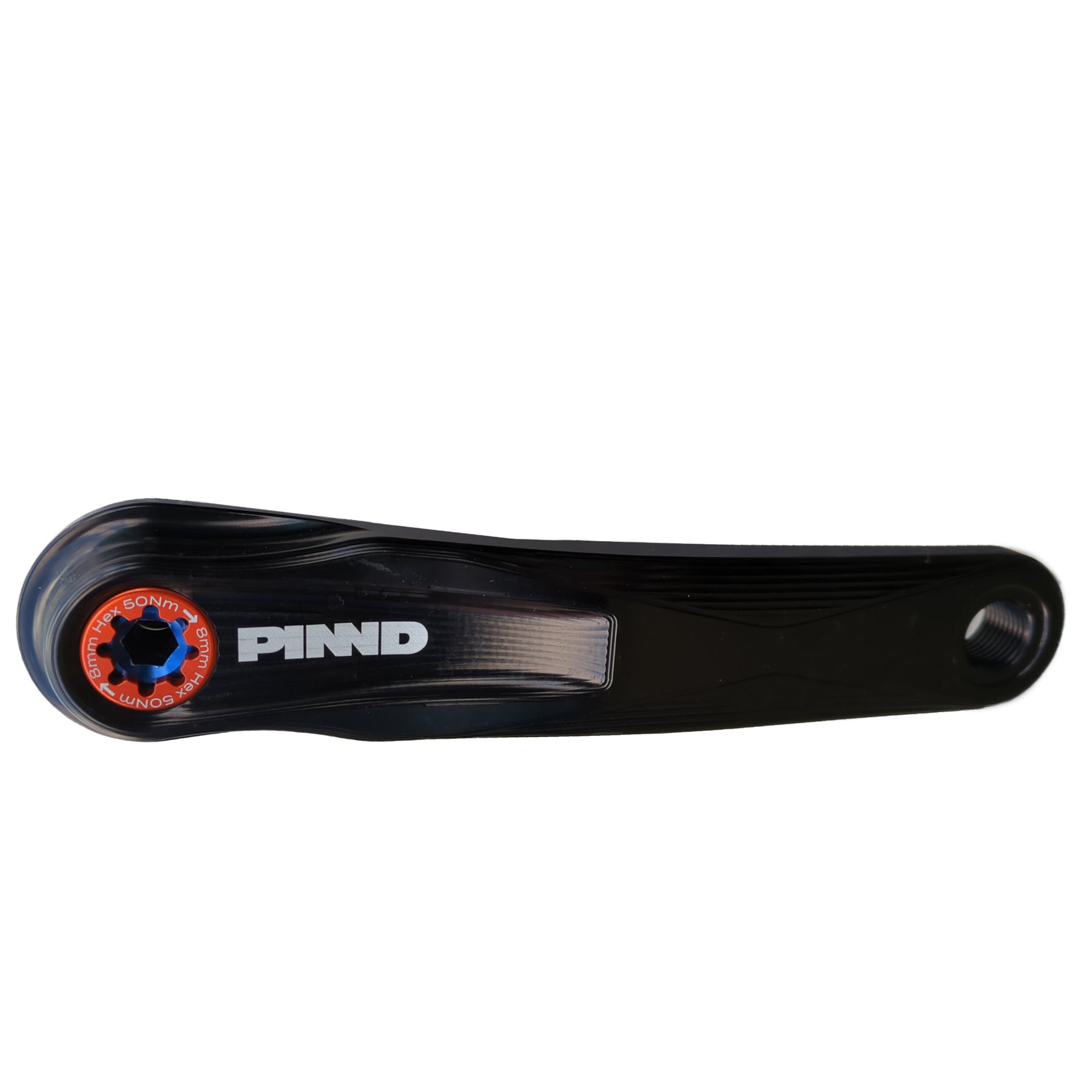

PINND eBike Cranks Bosch/Isis Black
PINND eBike Cranks Bosch/Isis Black Inside
PINND eBike Cranks Bosch/Isis Silver
PINND eBike Cranks Bosch/Isis Silver Inside
PINND eBike Cranks Bosch/Isis Silver With Blue Captive Nut
PINND eBike Cranks Bosch/Isis Silver End Cap
PINND eBike Cranks Bosch/Isis Black Ends
PINND Shimano eBike Cranks Black Front
PINND Shimano eBike Cranks Black Back
PINND Shimano eBike Cranks Black Pair
PINND Shimano eBike Cranks Silver Front
PINND Shimano eBike Cranks Silver Back
PINND Shimano eBike Cranks Silver Pair

eBike Cranks

CRB-BLK-145

Regular price$168.00
/
Shipping calculated at checkout.
Offset
Length
Colour
Made in Scotland from 7075 T651 anodised aluminium and certified for Enduro (Cat 4) use, PINND eBike Cranks are available in 145, 155 and 165 mm lengths.
  • Shorter lengths for better ground clearance.
  • Self extracting design for ease of fitting and removal.
  • Available in Black or Natural anodised finish.
  • Weight:
    • 165 mm arms: Bosch 496g/Shimano 484g
    • 155 mm arms: Bosch 472g/Shimano 467g
    • 145 mm arms: Bosch 450g/Shimano 451g
  • Matched Retaining Bolt and Captive Bolt included - colours available as optional extras.
PINND eBike Cranks Fitting Guide

UK Delivery

Orders Over £50 – Free (Royal Mail)

Orders Under £50 – £4.95 (Royal Mail)

FedEx £5.95

Our standard delivery time is 3–5 days. We do our very best to deliver orders within this time, but occasionally there are delays outwith our control, caused by either suppliers or couriers.

UK Bike Delivery

We offer free UK delivery on all bikes unless bought through a Ride To Work Scheme.

We don't currently deliver complete bikes outside the UK.

Custom-built bikes can be delivered in kit form (for you to assemble) – we can include shipping to your country in your quote.

International Orders

Due to the number of delivery options, the best way to get a shipping price is to add what you would like to your basket and begin the checkout. You'll be able to see the shipping price before you checkout.

Unless IOSS applies (see below) our website will remove UK VAT. You are likely to be liable for tax and duties in your delivery country.

IOSS - EU Orders Under £130

Tax and duties will be calculated at the checkout. Once you have paid 20Twenty, you will have nothing to pay in your delivery country.

Full Shipping Information Here

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Bosch offset: Optimised for Bosch Performance Line CX drive units, they are also compatible with most e-bike systems using the ISIS spline interface. For example, Bosch systems (Gen 2/4, excluding Gen 3 mini-ISIS Bosch spline shaft), Yamaha PW-X systems and Brose systems

With Bosch systems the Q-Factor is 186 mm, with Yamaha 177 mm.

For Brose systems the Q-Factor is 200 mm

IMPORTANT NOTE these are not optimised for Specialized bikes. Specialized with Brose drive units have a 4 mm offset. PINND ISIS interface cranks are not offset so they will not be centred with the frame.

Shimano Offset: Optimised for Shimano EP8 motors.

Warranty

These carry a Cranks For Life Warranty. Excluding crash damage or incorrect installation, PINND warranty eBike Cranks for a lifetime. In the unlikely instance they fail, PINND will replace them or repair them free of charge. The cranks are warranted to be free of material and workmanship defects.

The warranty ends when the cranks become unusable for reasons other than defects in workmanship or material.

Should you damage a set beyond repair through crash or other misfortune, we will replace them at a price of 50% of your original purchase price.

Warranty does not cover any failures caused by misuse, modification or abnormal wear and tear. Neither will any responsibility for incidental or consequential damages be accepted.

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Paul N.
PINND cranks

The cranks are outstanding and I would not recommend any other. 145mm seams short until you hit the trails then everything makes sense. No more pedal strikes and tech climbs become the new challenge. 20/20 fantastic service much better than PINND customer service

a
alick o.
very nice

got theys for a bafang m620 powered bike
wasn't shore they would fit but they do
i got 155 length now blasting up the techy hill climbs with so much less pedal hits
(1 pic shows tightest part to a bolt , ther about 2mm space)

A
ARAN C.
Great cranks

Replaced the standard 165mm cranks with these 155mm pinnd cranks and they make a big difference. I've had no rock strikes yet, they feel really stiff and the writing won't rub off due to the concave profile
